Small retreat blade impeller
Retreat curve agitator | Specifically designed for low level mixing in dished and shallow coned bottoms with a bottom outlet. Mixed flow type impeller. Uniform shear forces; Circulating flow under the baffle; Medium or low speed; Low energy consumption. Designed for low level mixing in dished or coned bottoms with a bottom outlet. Application: Solid dispersion, dissolution, suspension, heat transfer, liquid phase reaction.
- HXCHEM
- China
- 5 days after payment
- 30 sets/month
Details
Retreat Curve Turbine Impeller
Introduction

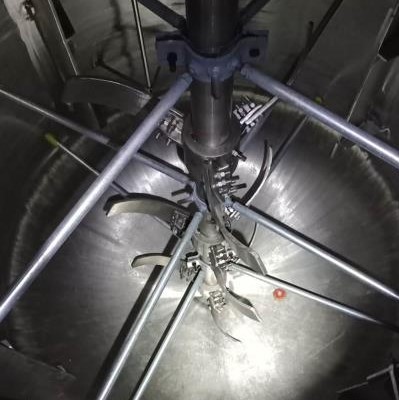

An asymmetric flow mode is generated at the bottom of the tank, and the contents of the tank are rotated to remove mud from the tank while minimizing solid accumulation.

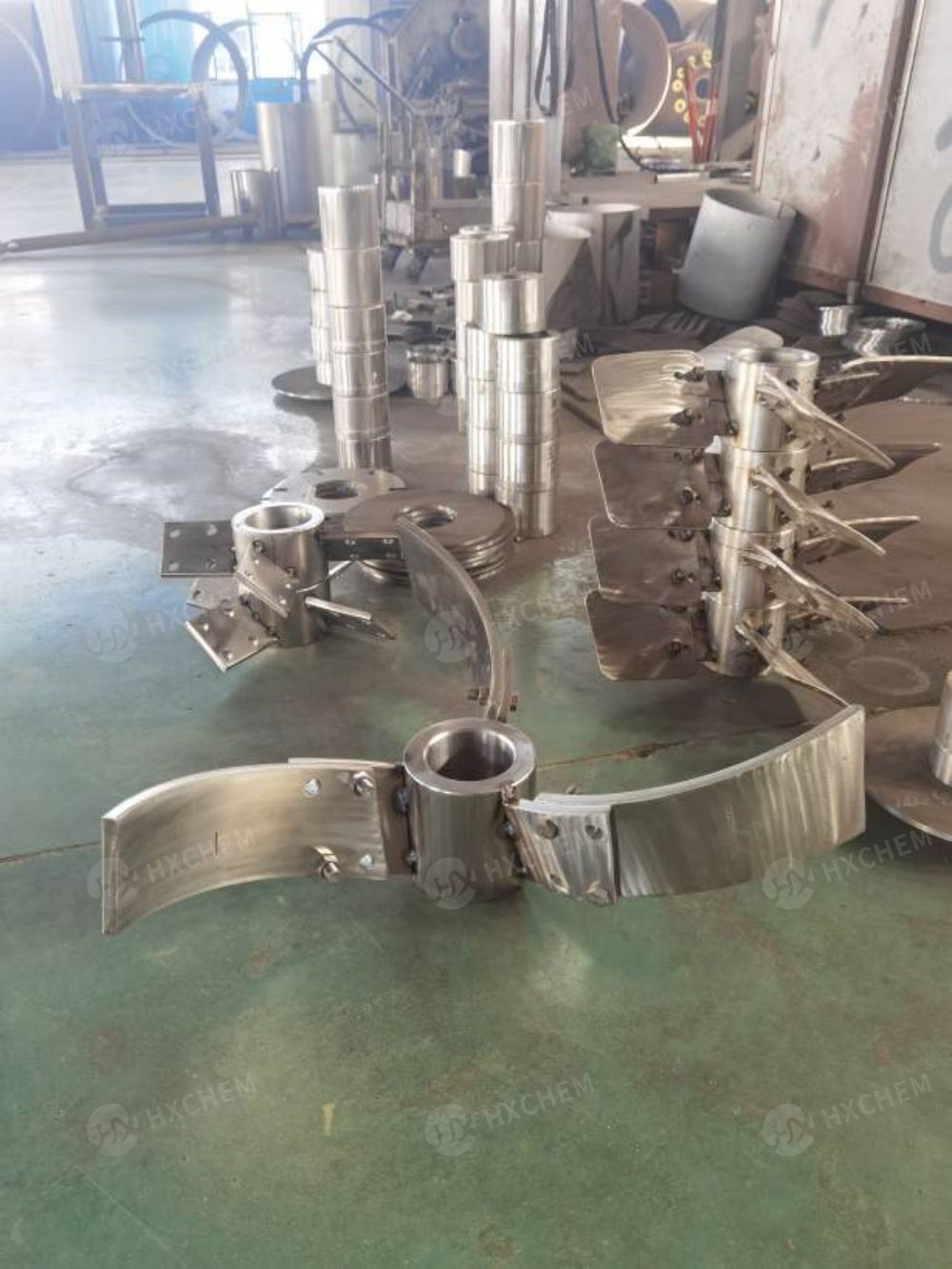

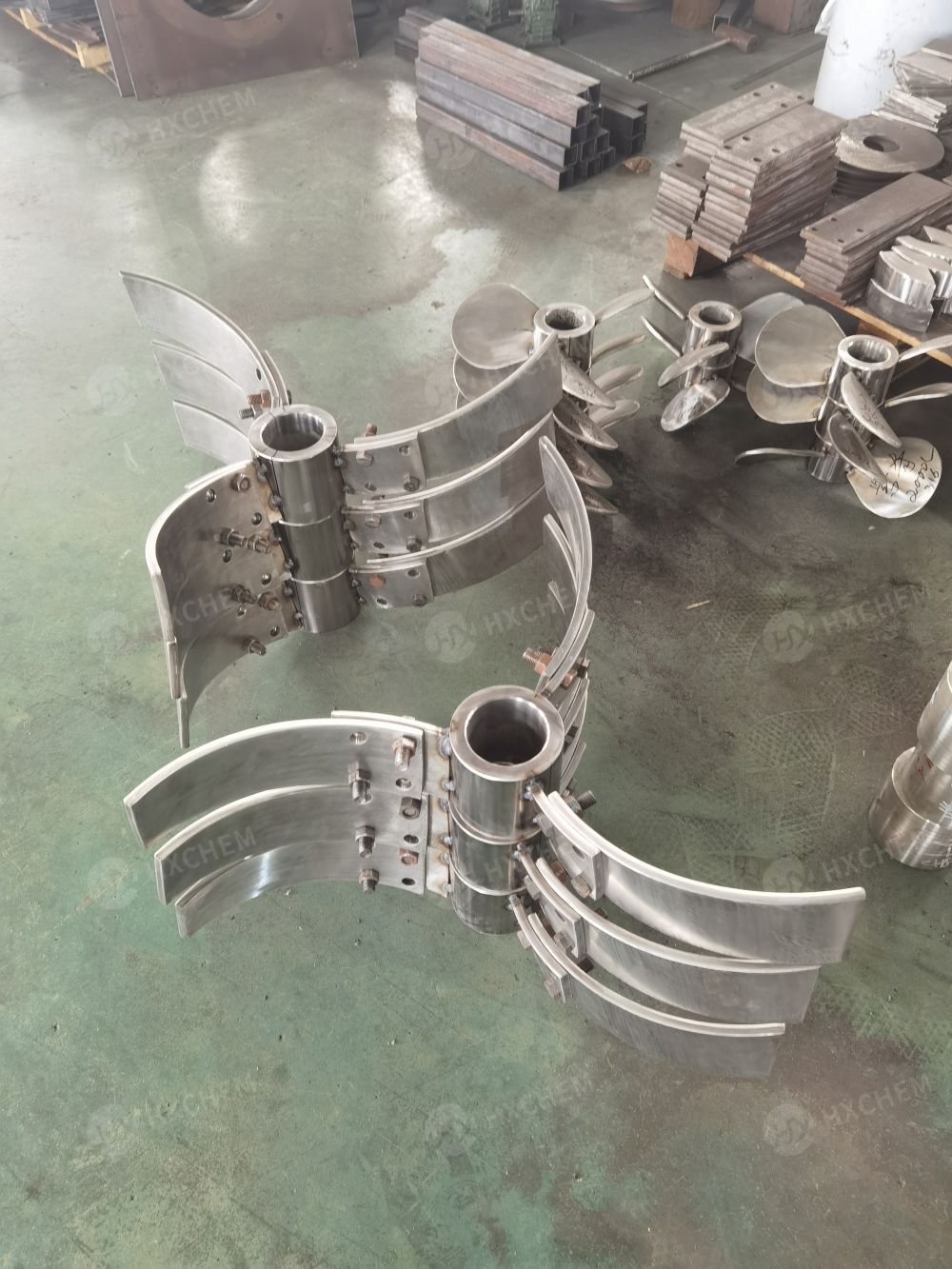

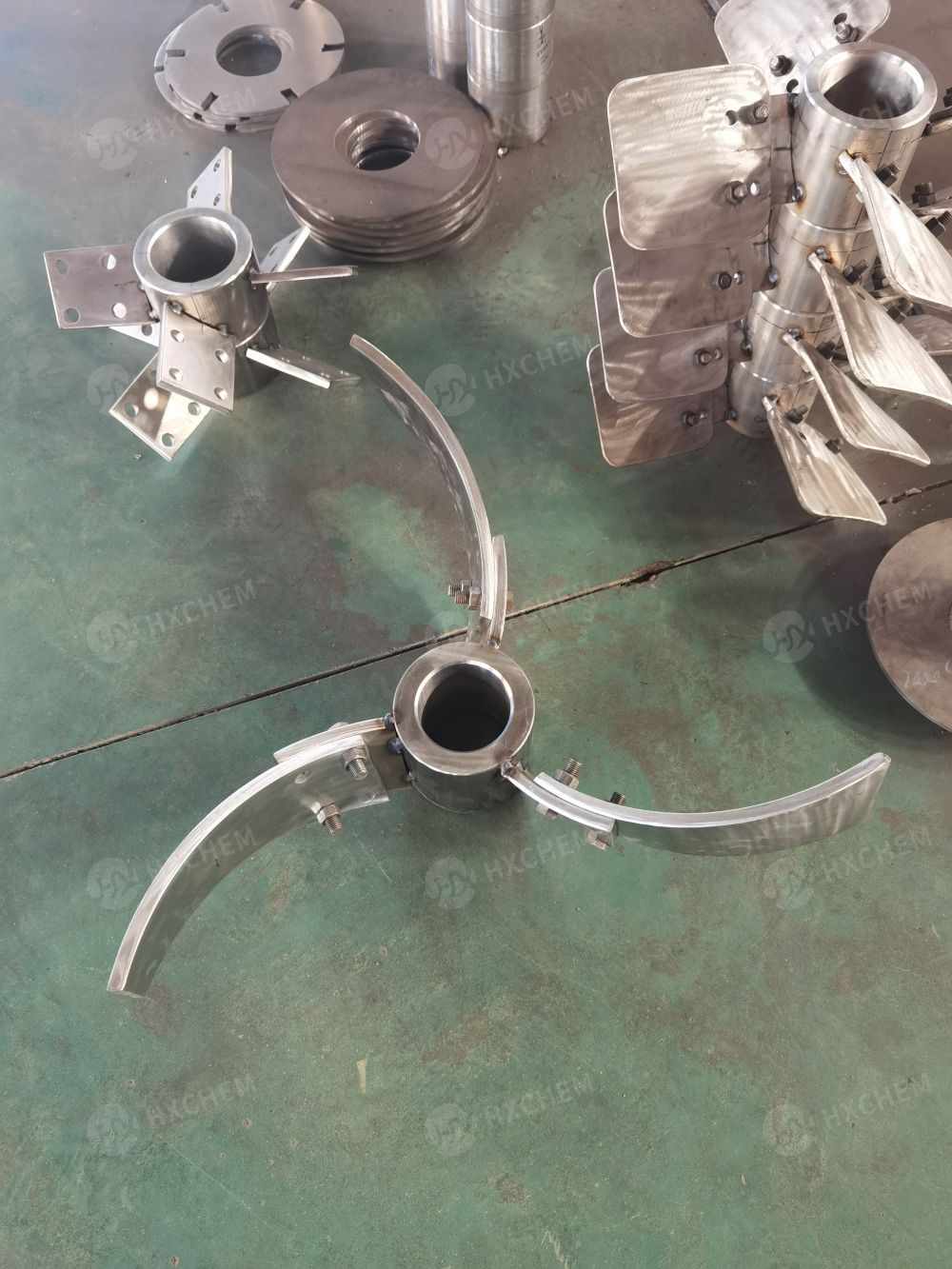

Compared with more traditional blade and blade turbines, the torque requirement is lower and the performance is better. The Backflip Blade Turbine（Small retreat blade impeller） is a specialized mixing impeller designed primarily for solids removal from vessel bottoms. It is characterized by at least three blades that curve backwards relative to the direction of rotation. This design is most commonly found in glass-lined or dished-bottom reactors.

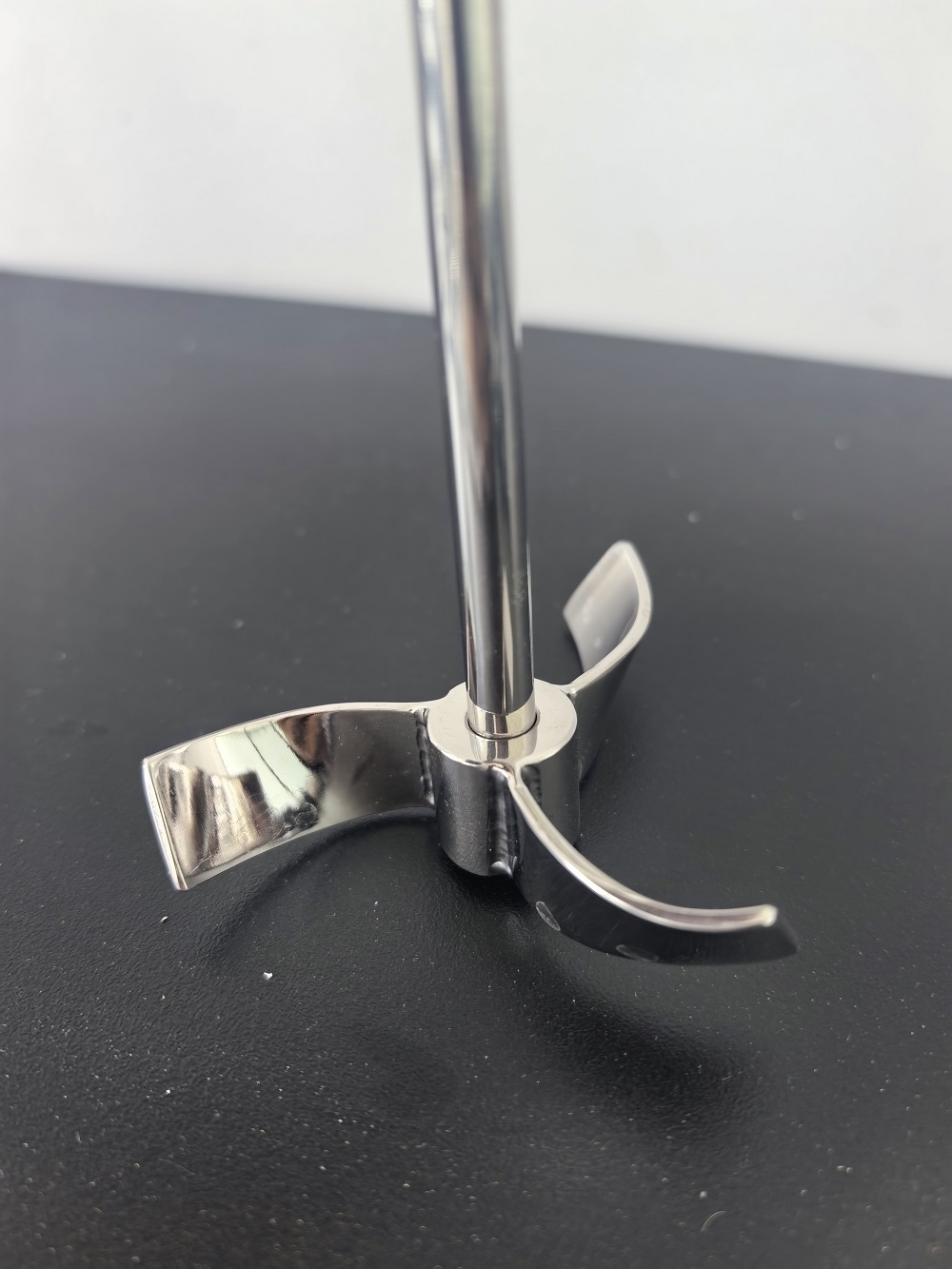

Retreat curve impeller | Retreat curve turbine | Backflip blade turbine
Technical Requirements
Rotation diameter(mm): 80mm, 120mm, 150mm, 200mm, 300mm, 350mm, 400mm
Shaft hole(mm): 8mm, 10mm, 12mm, 16mm, 20mm, etc.
QTY of impeller: 3
Material: SS304, SS316L, Titanium, Hastelloy C276.
Mixed flow type impeller.
Uniform shear forces; Circulating flow under the baffle; Medium or low speed; Low energy consumption.
Designed for low level mixing in dished or coned bottoms with a bottom outlet.
Application: Solid dispersion, dissolution, suspension, heat transfer, liquid phase reaction.
