PTFE coating spiral helical impeller
PTFE-coated spiral helical impellers combine the non-stick, chemical-resistant properties of polytetrafluoroethylene (PTFE) with the axial flow patterns of helical or screw-type mixing geometries.
- HXCHEM
- China
- 20 days after payment
- 15 sets/month
Details

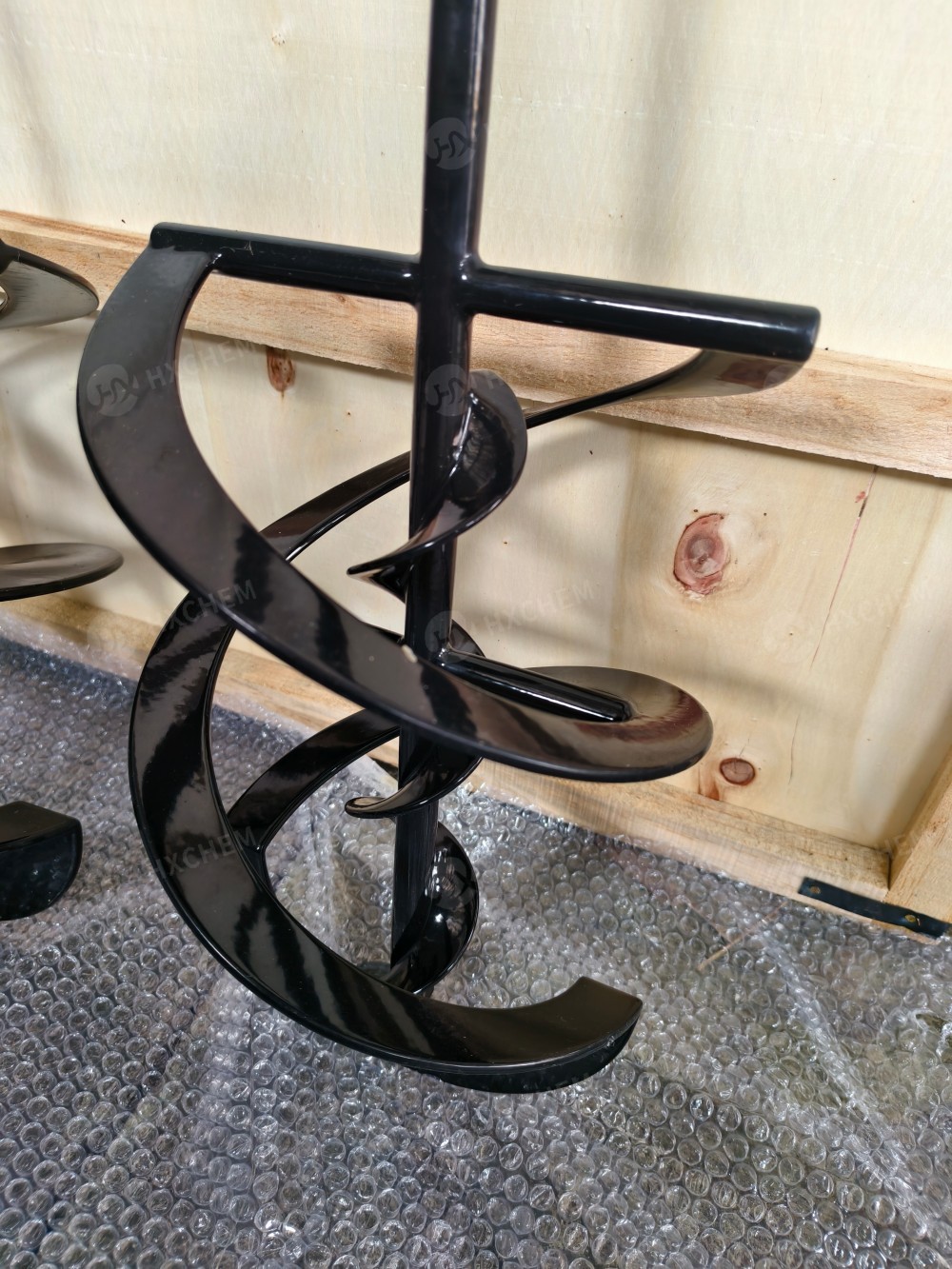

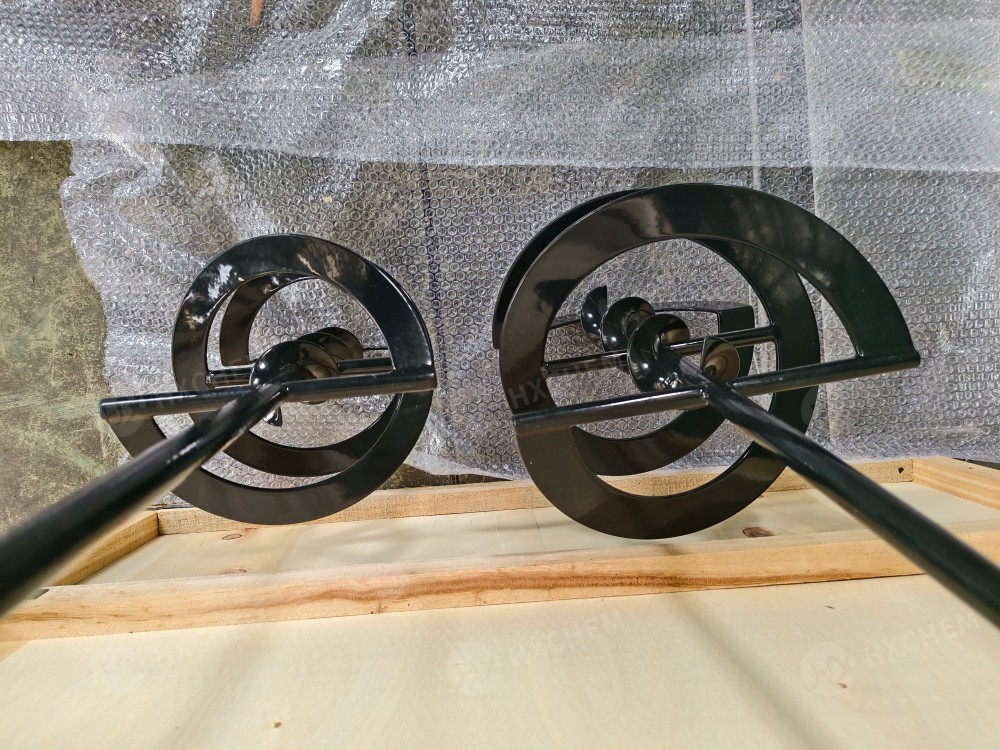

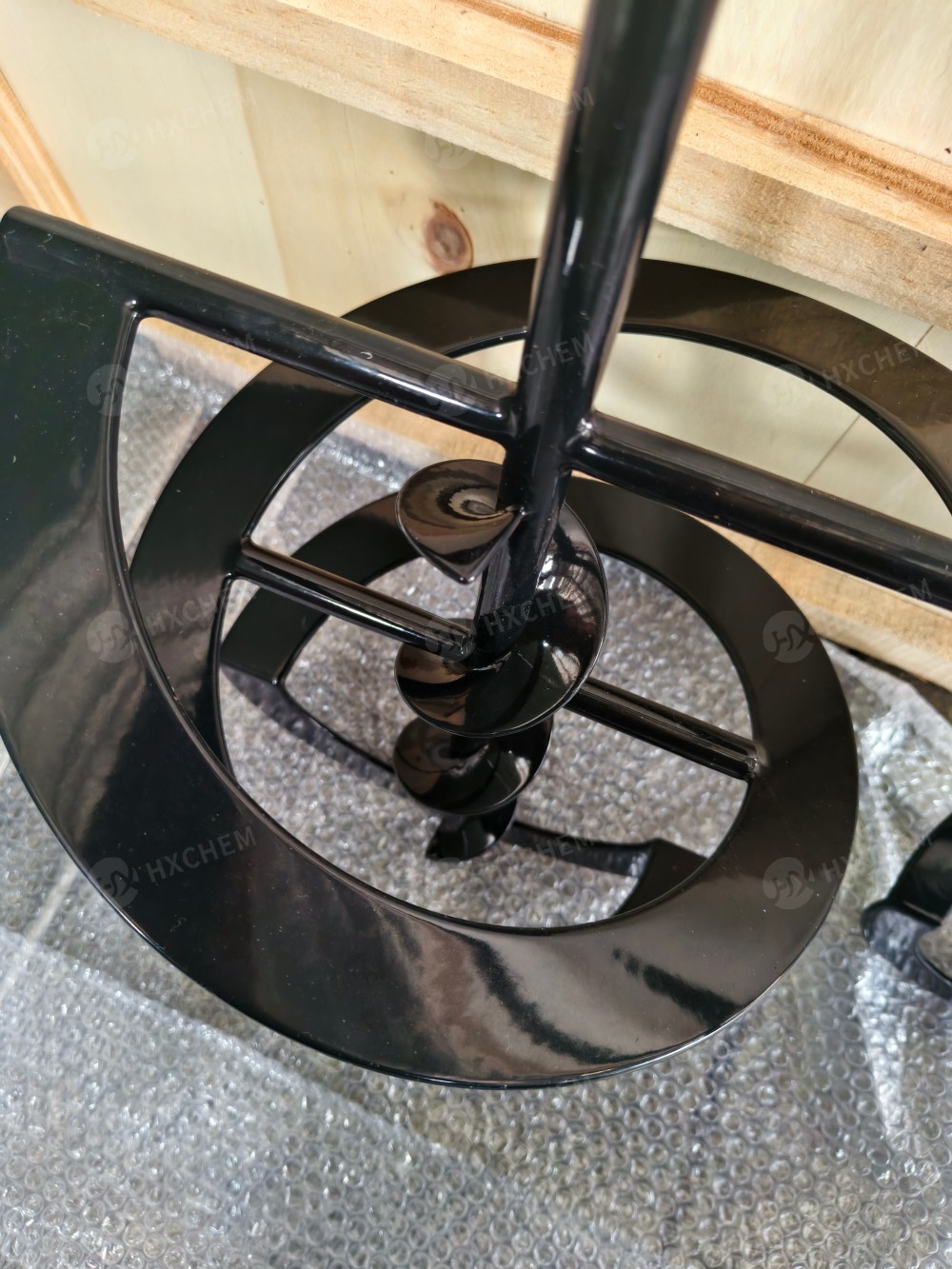

PTFE coating spiral helical impeller
Introduction

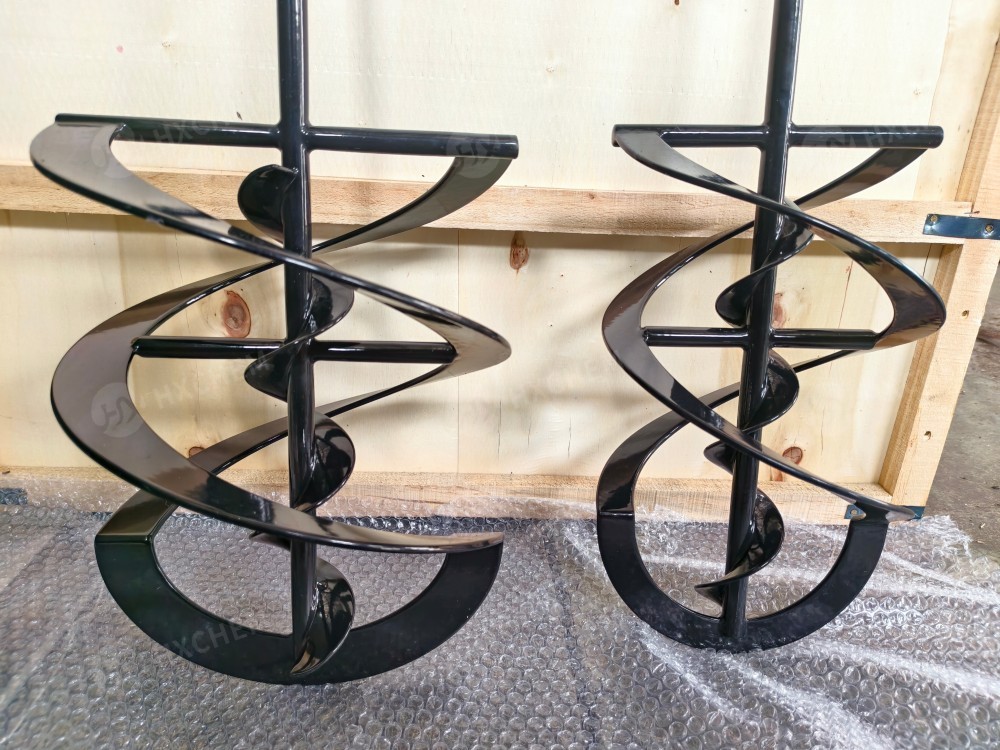

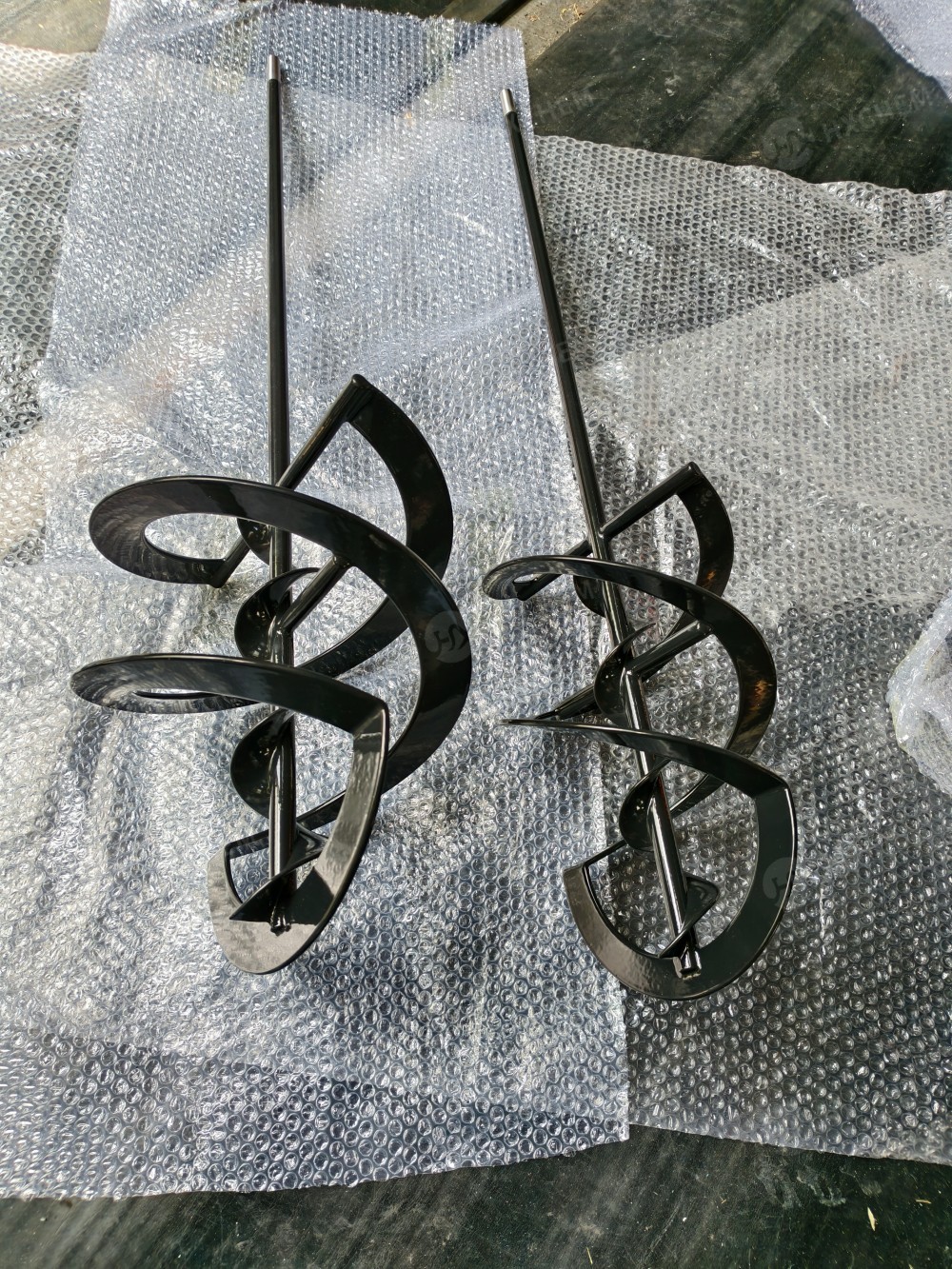

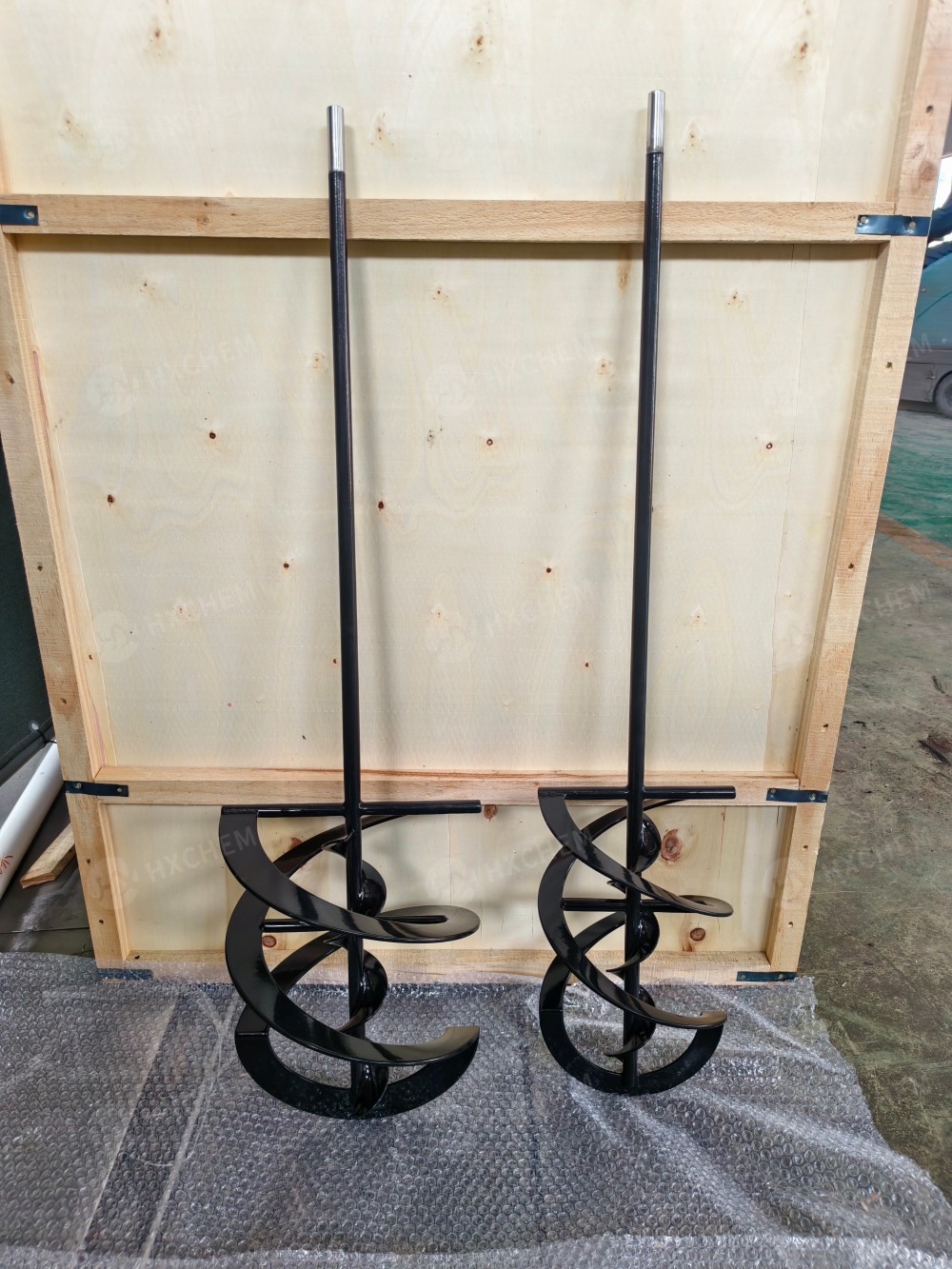

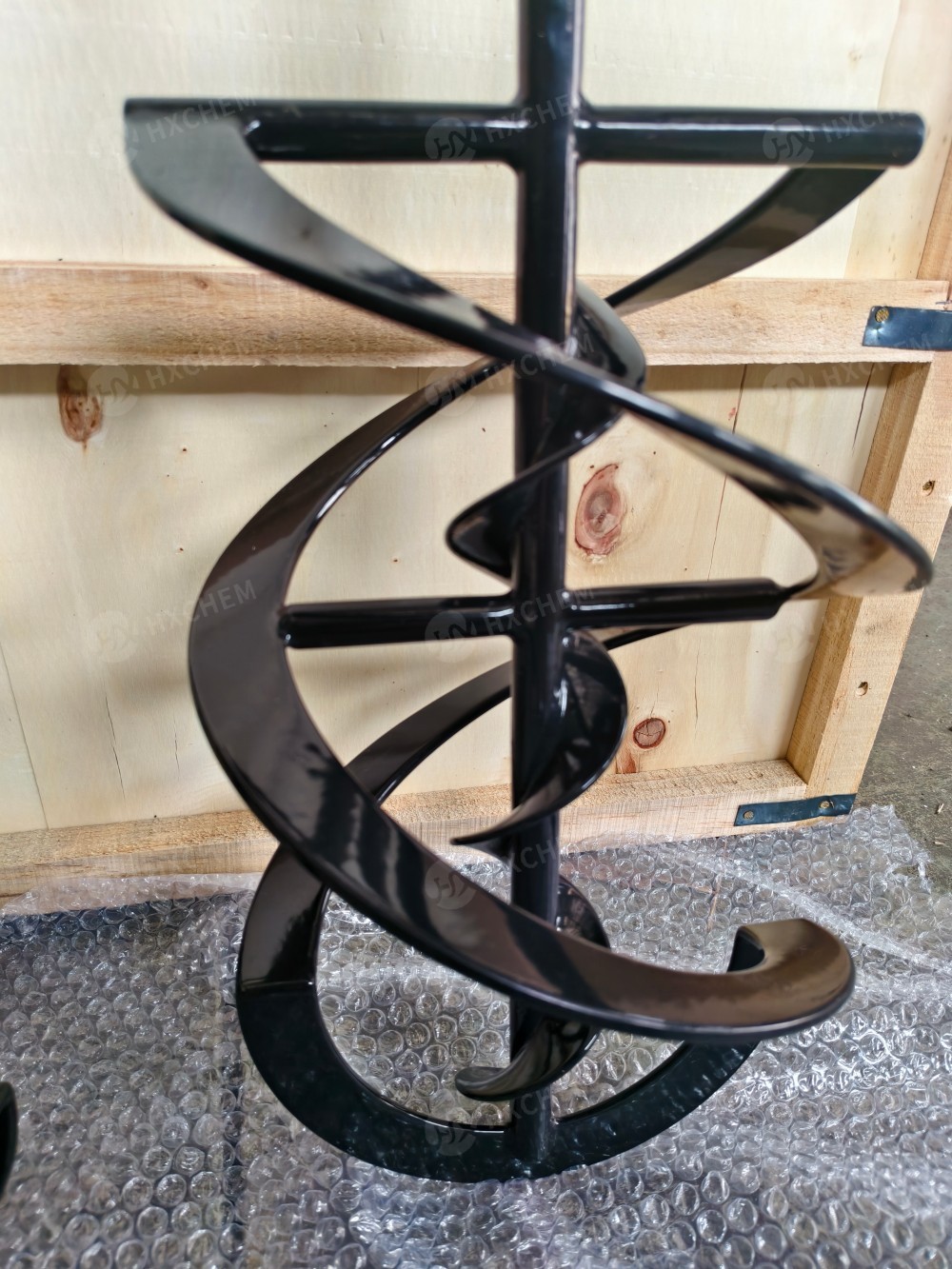

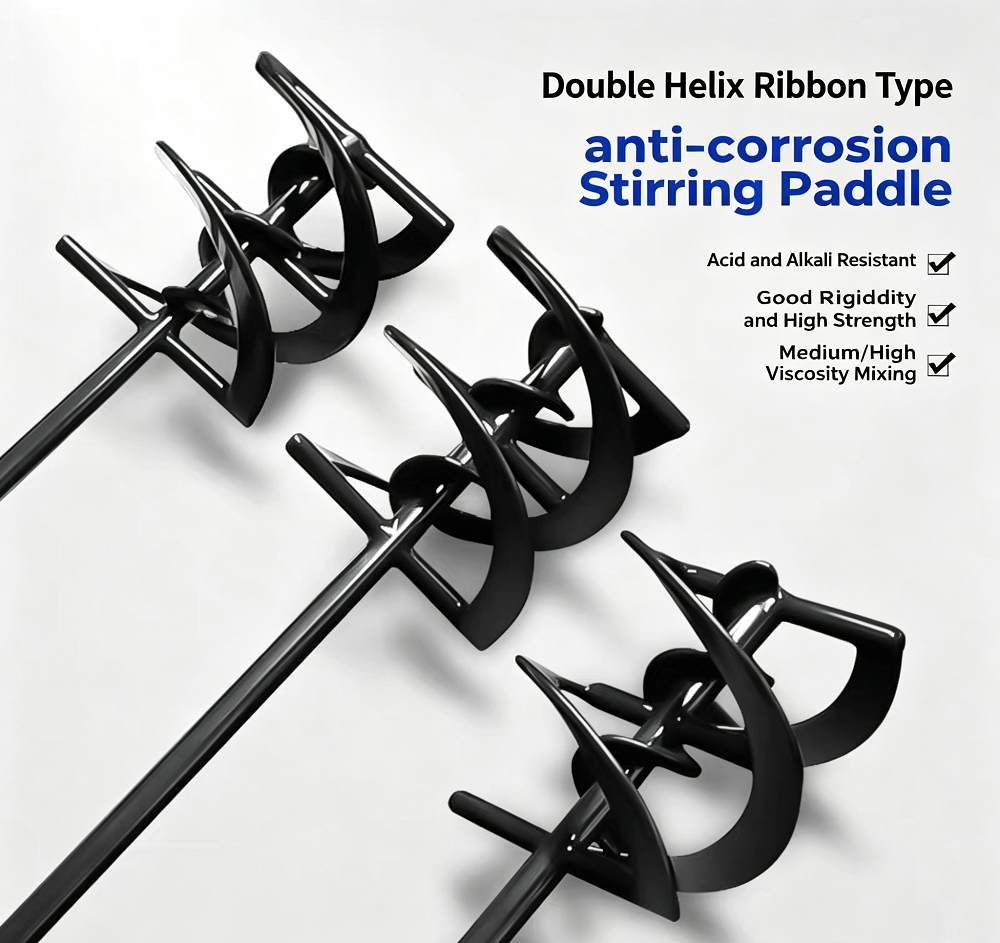

Small Stainless Steel Screw Belt Impeller/ Small double helix impellers/double helix impellers/ Small helical impeller/ applicated in laboratory mixing machine, laboratory reactor, mixing tank.
Material: SS304 with PTFE coating
Structure: Centrel screw rod type with external helix impeller
Technical Requirements
Diameter of impeller(mm): 80mm, 100mm, 120mm, 150mm, 200mm, 250mm, 300mm, 350mm, etc.
Shaft hole(mm): 8mm, 10mm, 12mm, 16mm, 20mm, etc.
Material: SS304 with 0.5-0.7mm PTFE coating

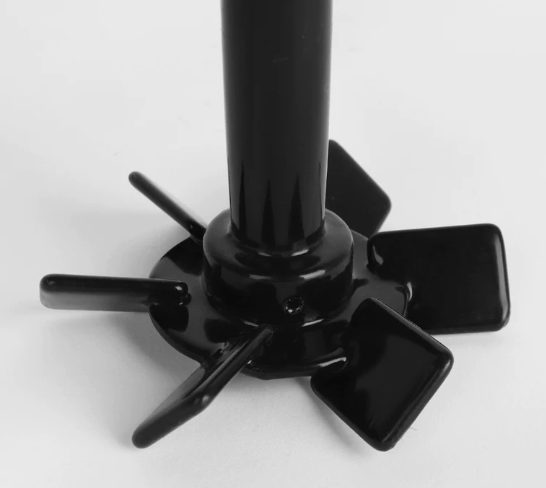

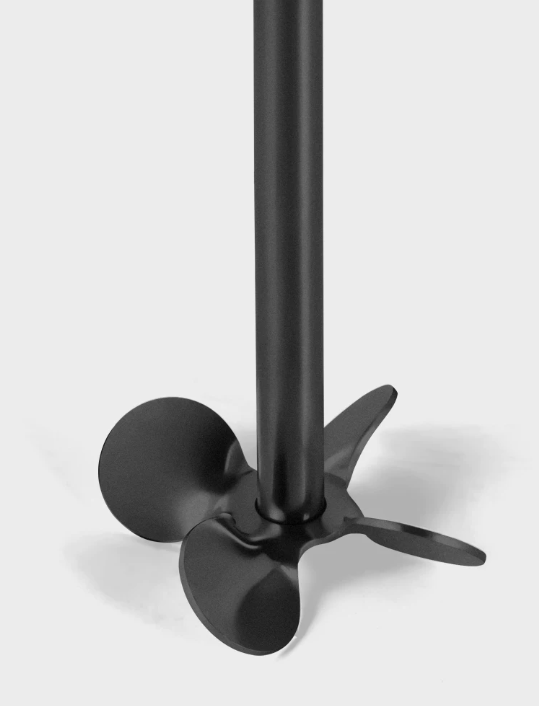

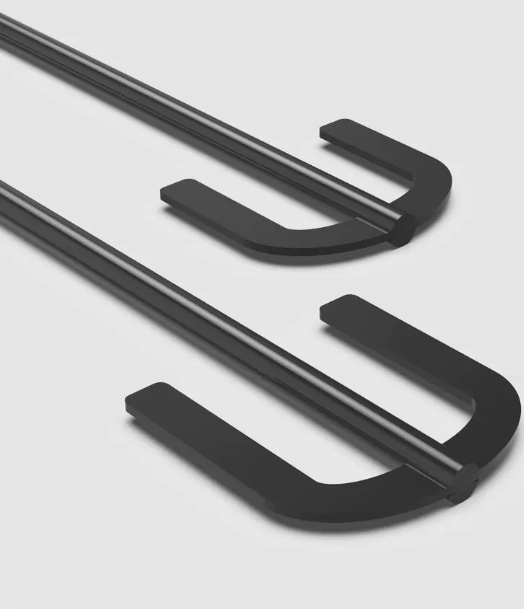

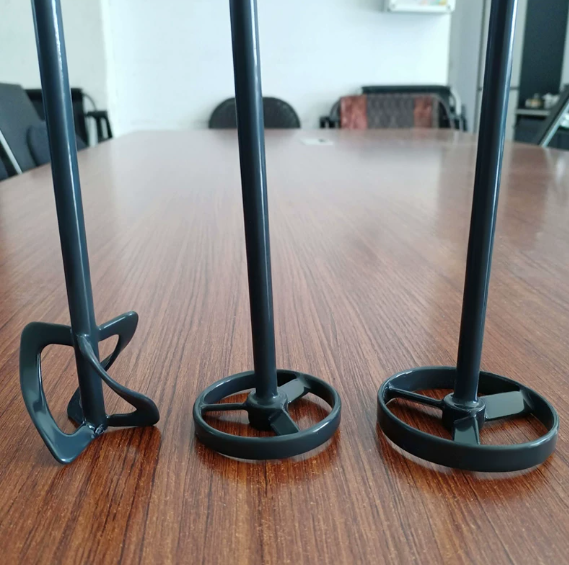

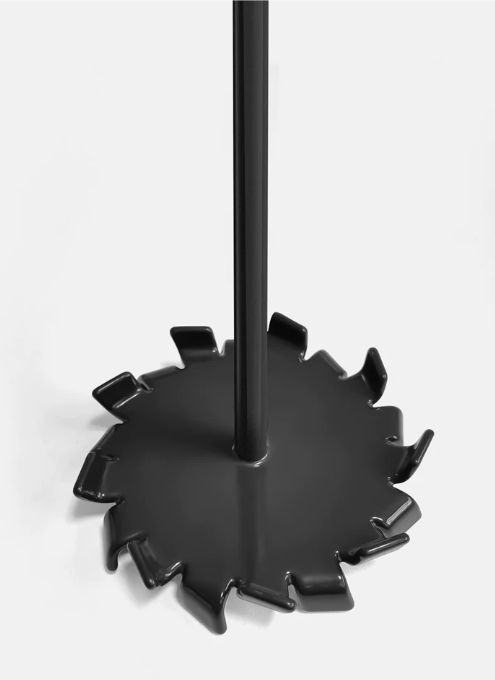

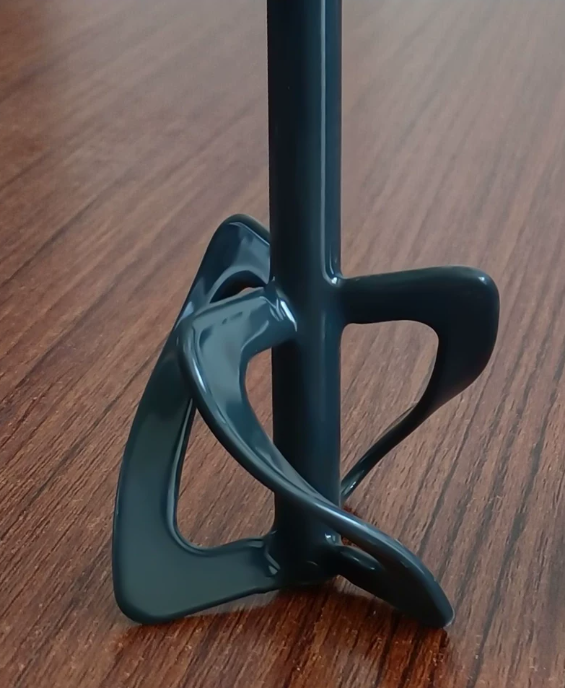

Others PTFE coating impellers
Why choose PTFE coating for a Spiral/Helical Impeller?
Chemical Inertness: PTFE is resistant to almost all chemicals. This prevents the metal impeller from corroding or reacting with the batch media, making it essential for pharmaceutical or aggressive chemical synthesis .
Non-Stick (Release): The low friction surface prevents media from caking or adhering to the spiral blades, which is critical when mixing adhesives, resins, or biological materials .
Wear & Hydrophobicity: Studies show that a PTFE top layer increases surface hydrophobicity (water repellence), which helps reduce slurry and cavitation erosion wear on the impeller blades .
