Pilot scale stainless steel pressure reactor

stainless steel pressure reactor/ Crane Lifting High Pressure Reactor/High Pressure Reactor/Lab pressure reactors/ Lifting reactors/ Titanium autoclaves/ Hastelloy reactors/stirred pressure autoclave

  • hxchem
  • china
  • 50 days after payment
  • 40 sets/month

Details

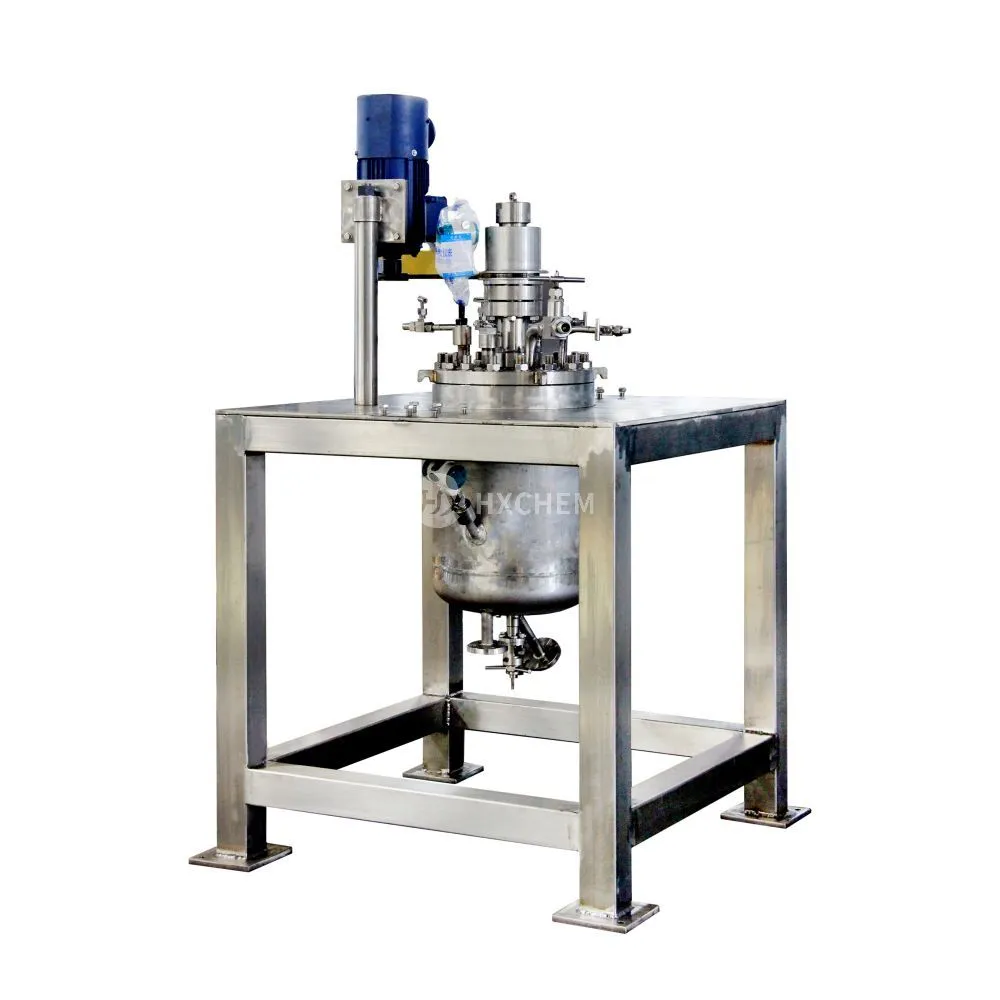

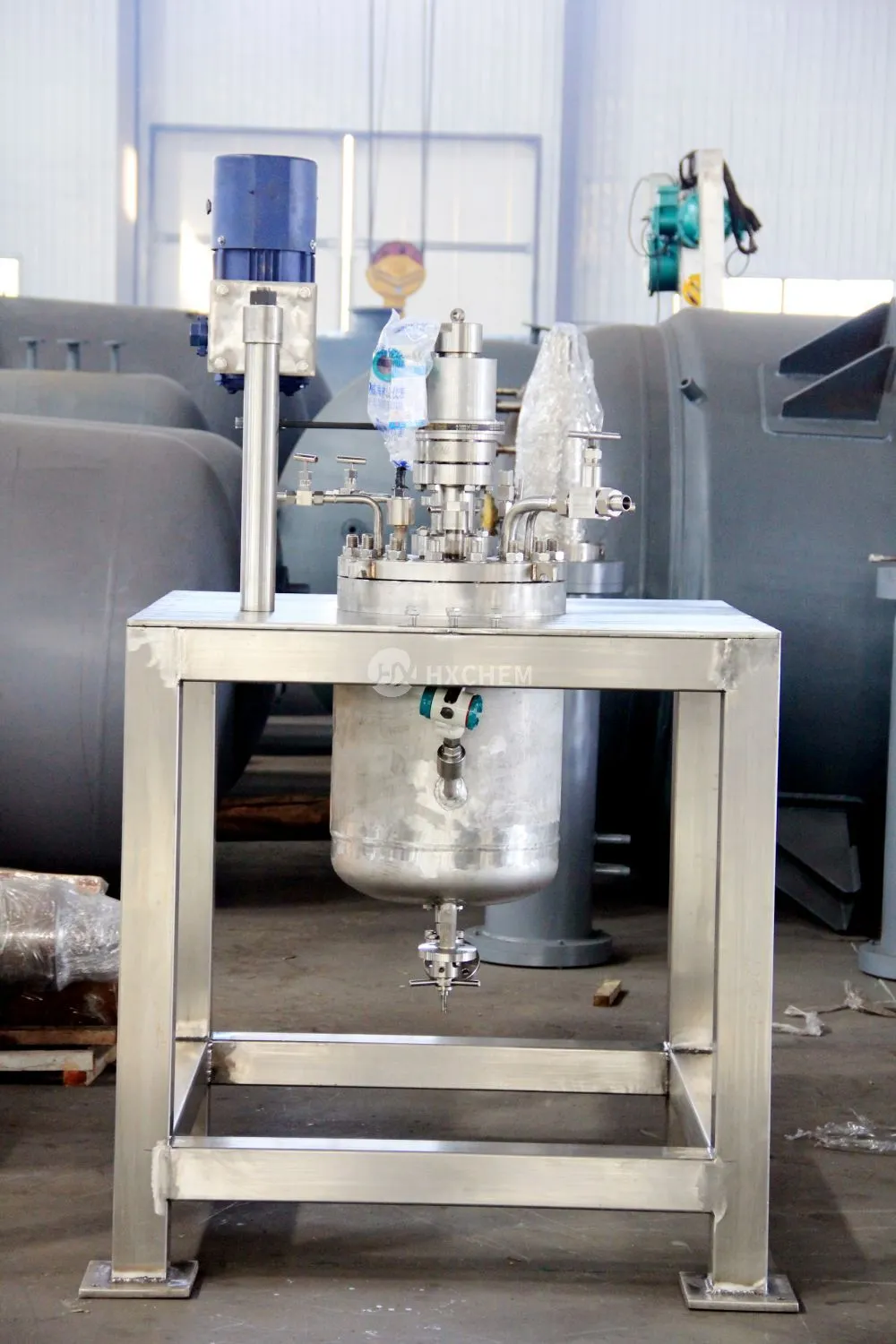

Pilot scale stainless steel pressure reactor


pressure reactor

Introduction

This series pilot scale stainless steel pressure reactor/ stirred pressure autoclave is widely used in scale up and small-scale production

  • Volume: 50l, 100l, 200l, 300l, 500l.

  • Pressure: Standard 100bar, maximum up to 300bar

  • Temperature: Up to 350℃

  • Material:SS304, SS316, Hastelloy B/C, Nickel, Titanium, Zirconium, etc.

  • Heating method:Electric oil heating

  • Seal type: Magnetic stirrer drives







stainless steel pressure reactor

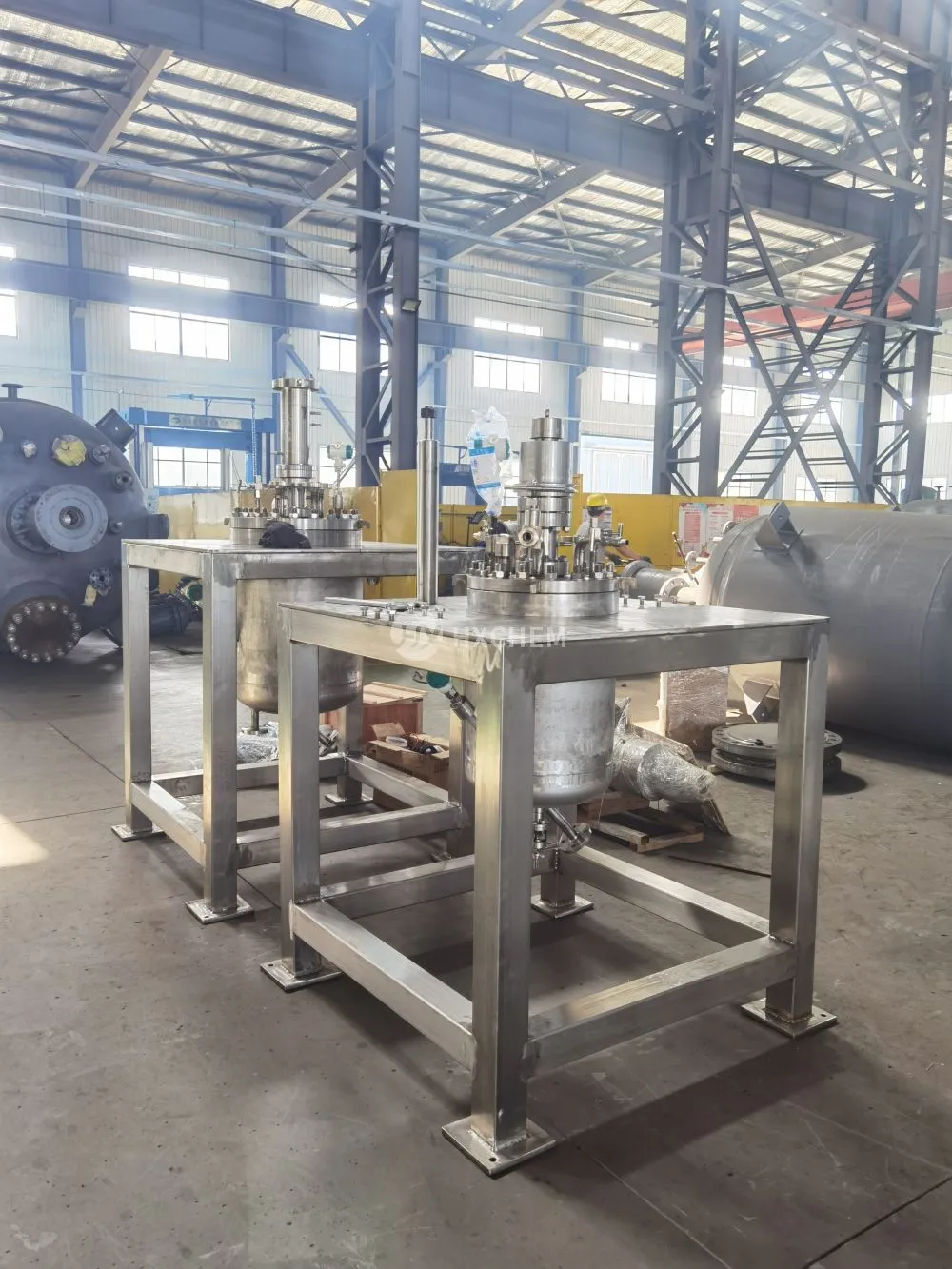

Pilot reactor



Features



Salient Features

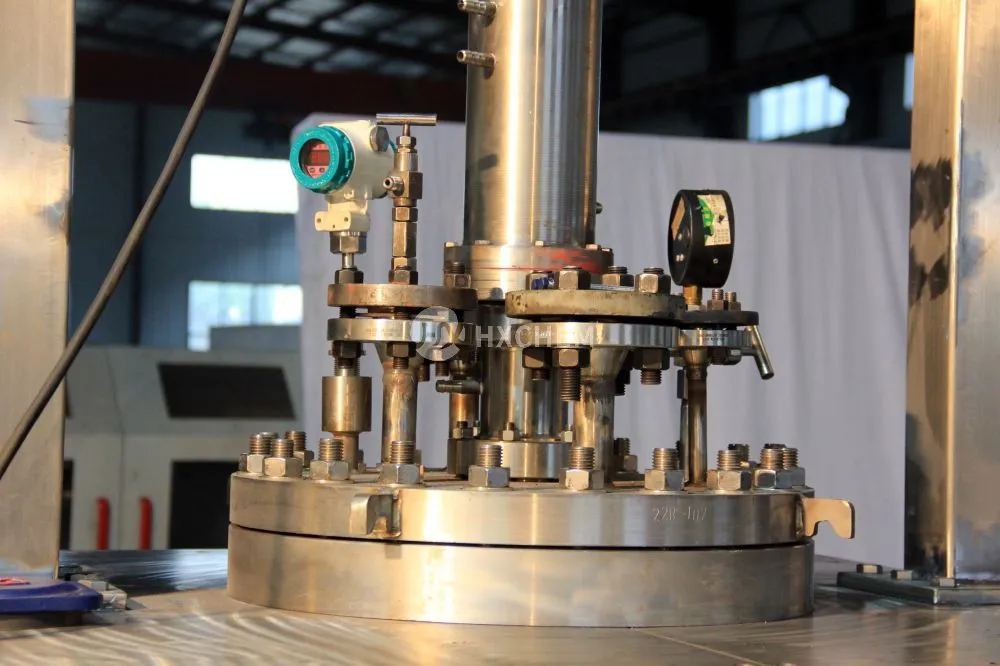

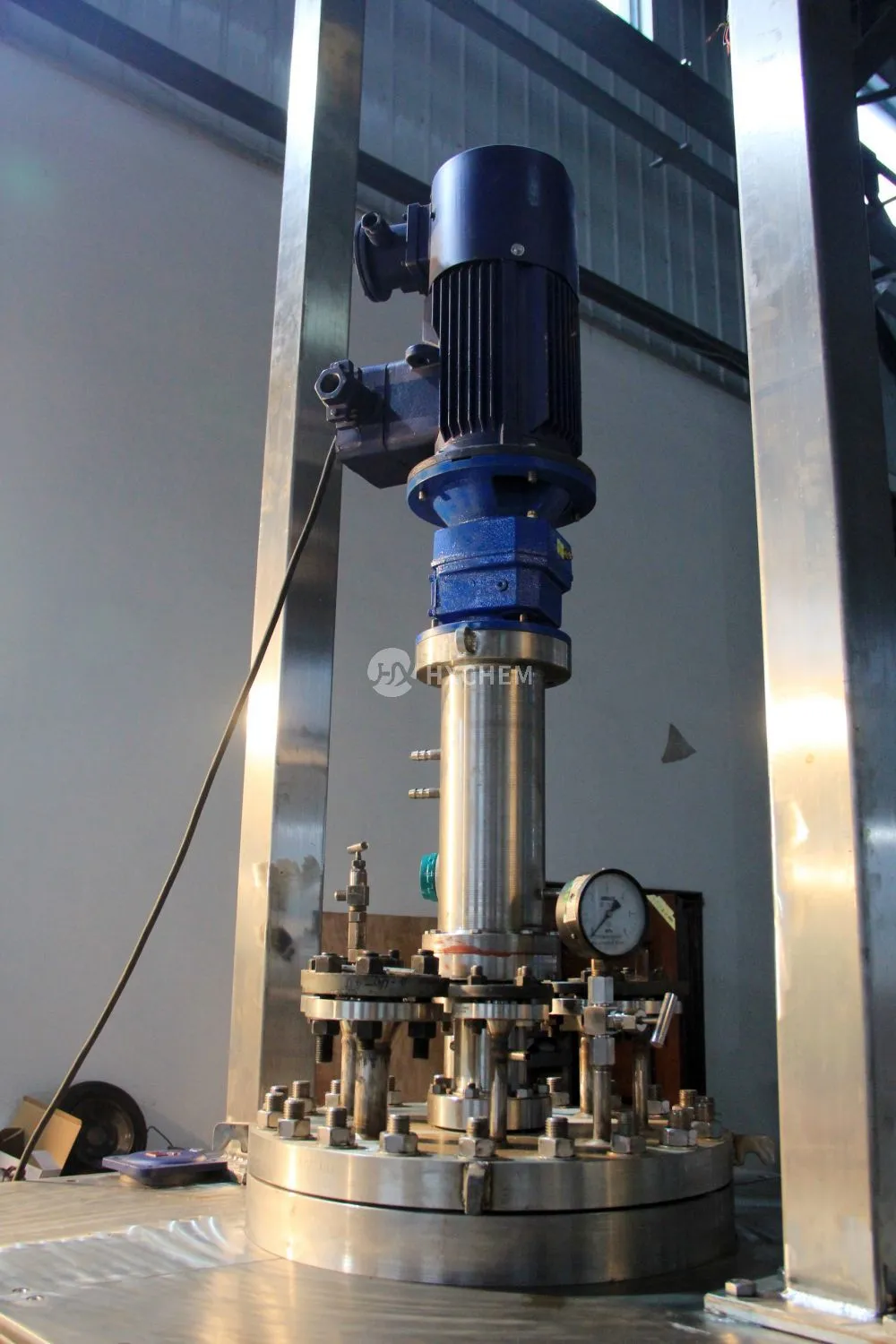

  • High torque zero leakage magnetic coupling drives

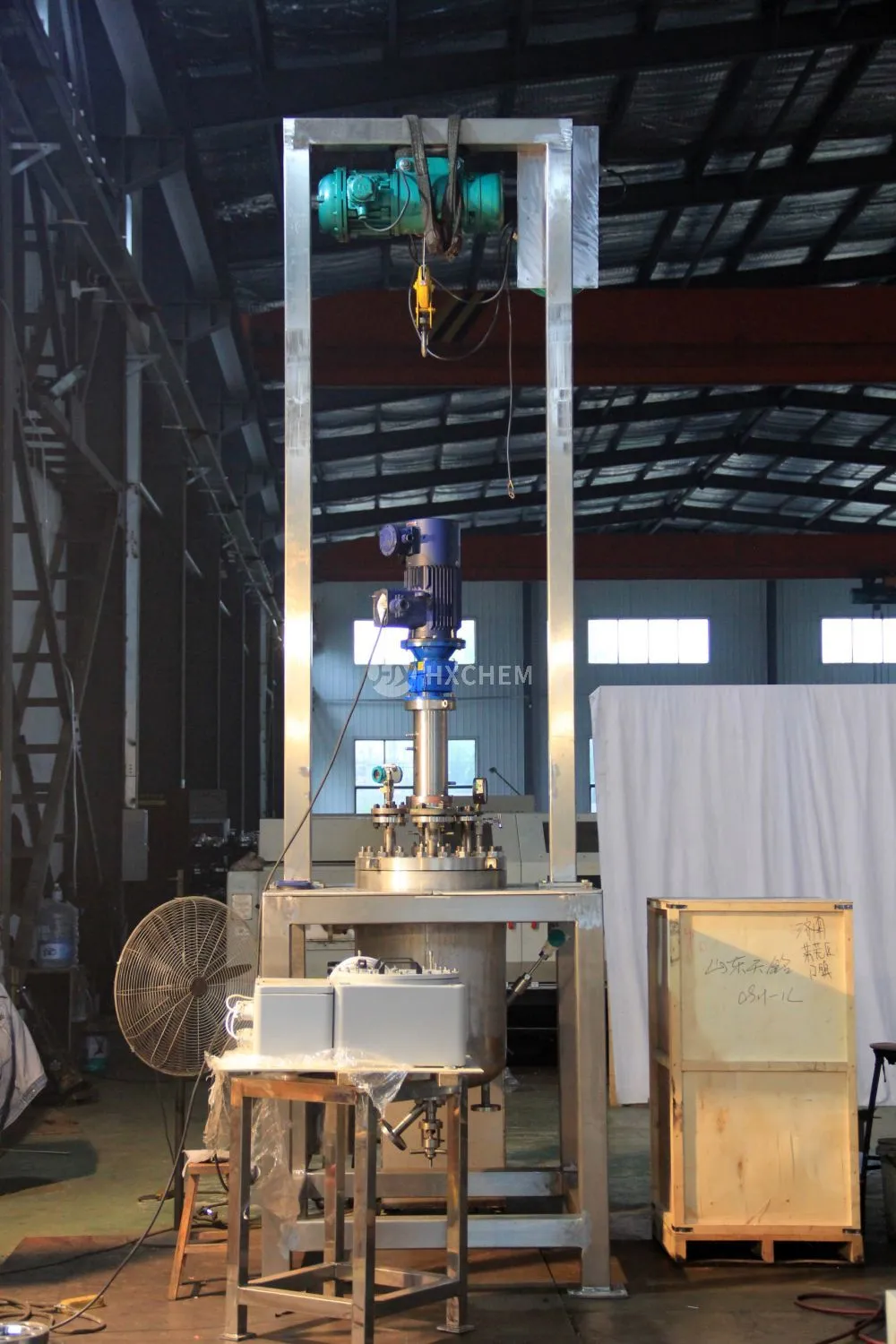

  • With electric crane lifting devices, easy to open the heavy cover lid.

  • Pressure gauge display and temperature sensor.

  • Internal cooling coils with water tap;

  • Control panel with program PID temperature controller.

  • Gas/liquid inlet & outlet with needle valve control, dip tube, etc;

.

Optional

  • Bottom drain valve.

  • Constant pressure feeding tank;

  • Vertical and horizontal condenser;

  • Reflux pipeline and external receving system;

  • Buffer tank & vaccum pump.

Standard Specification


pressure reactor

Note

Customer is advised to select best suited options for most optimized price & delivery.

Customization of volume, material, pressure, temperature etc. may be possible on request.
Different power supply options may be possible on request.

Typical Applications


  • Hydrogenation reactor;

  • Polymerization reactor;

  • Synthesis reactor;

  • Catalyst testing / evaluation;

  • Catalytic reactor

  • Crystallization;

  • Chemical development.




stainless steel pressure reactor






  • Corrosion test, and catalyst test

  • Petrochemical research;

  • Biomass research;

  • Zeolite synthesis;

  • Corrosion testing autoclave;

  • Scale-up;Pilot-Plant; Small-scale production;
