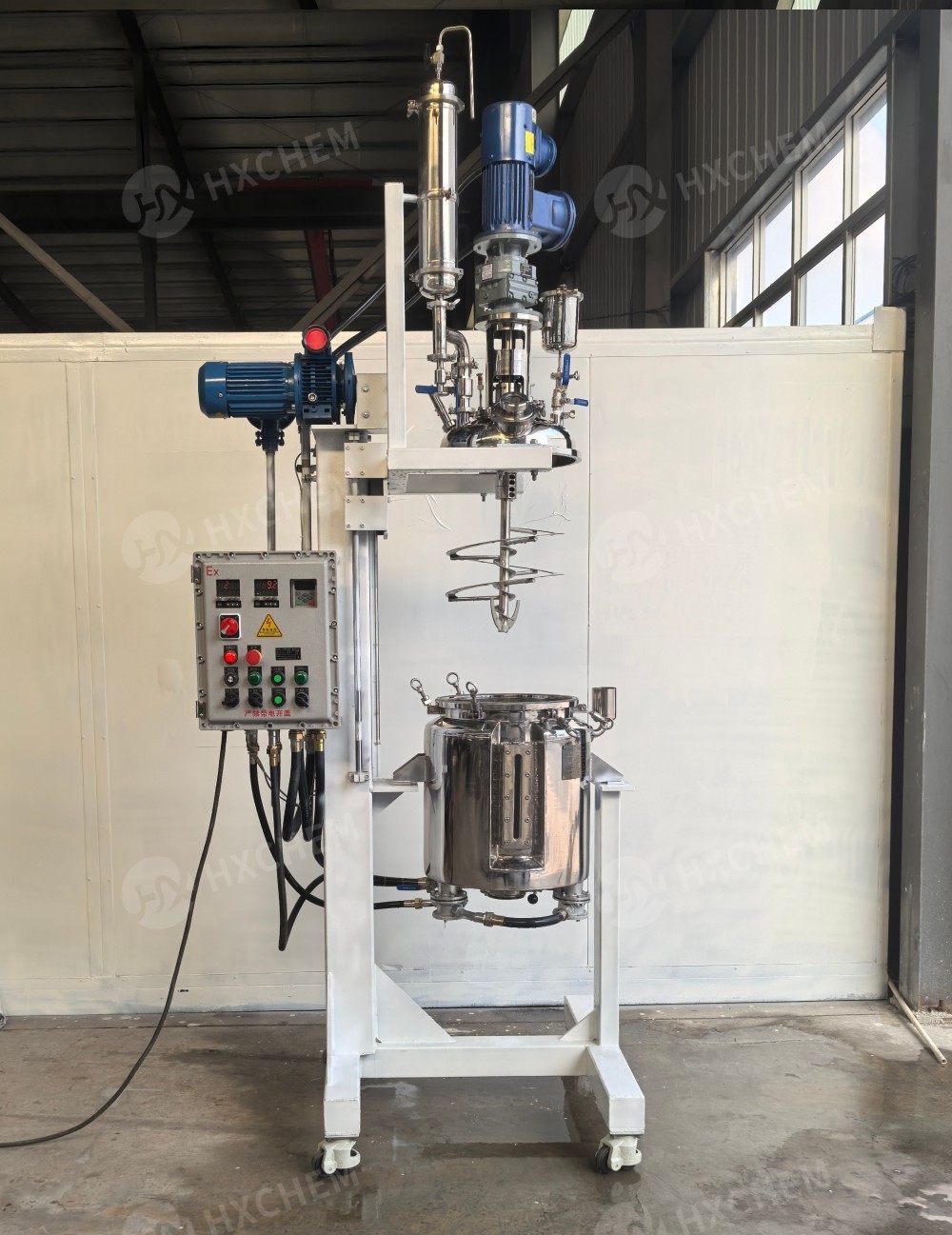

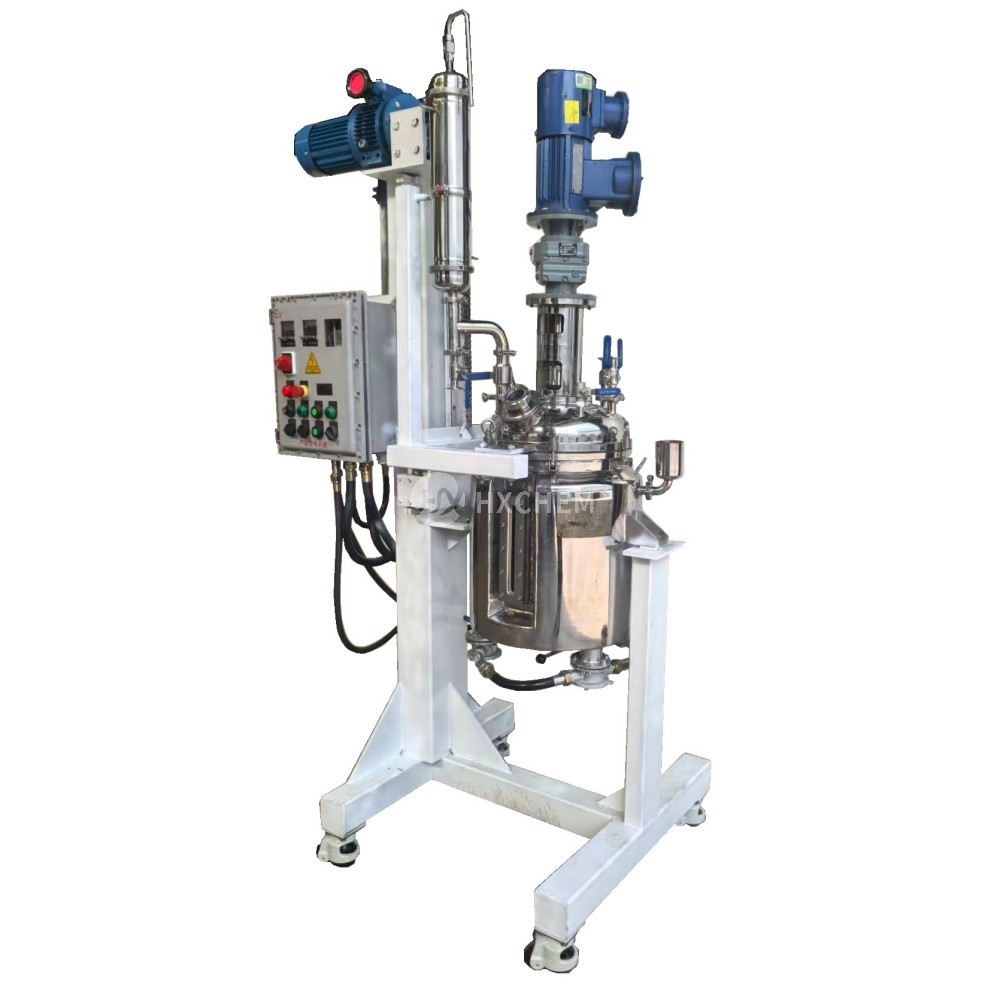

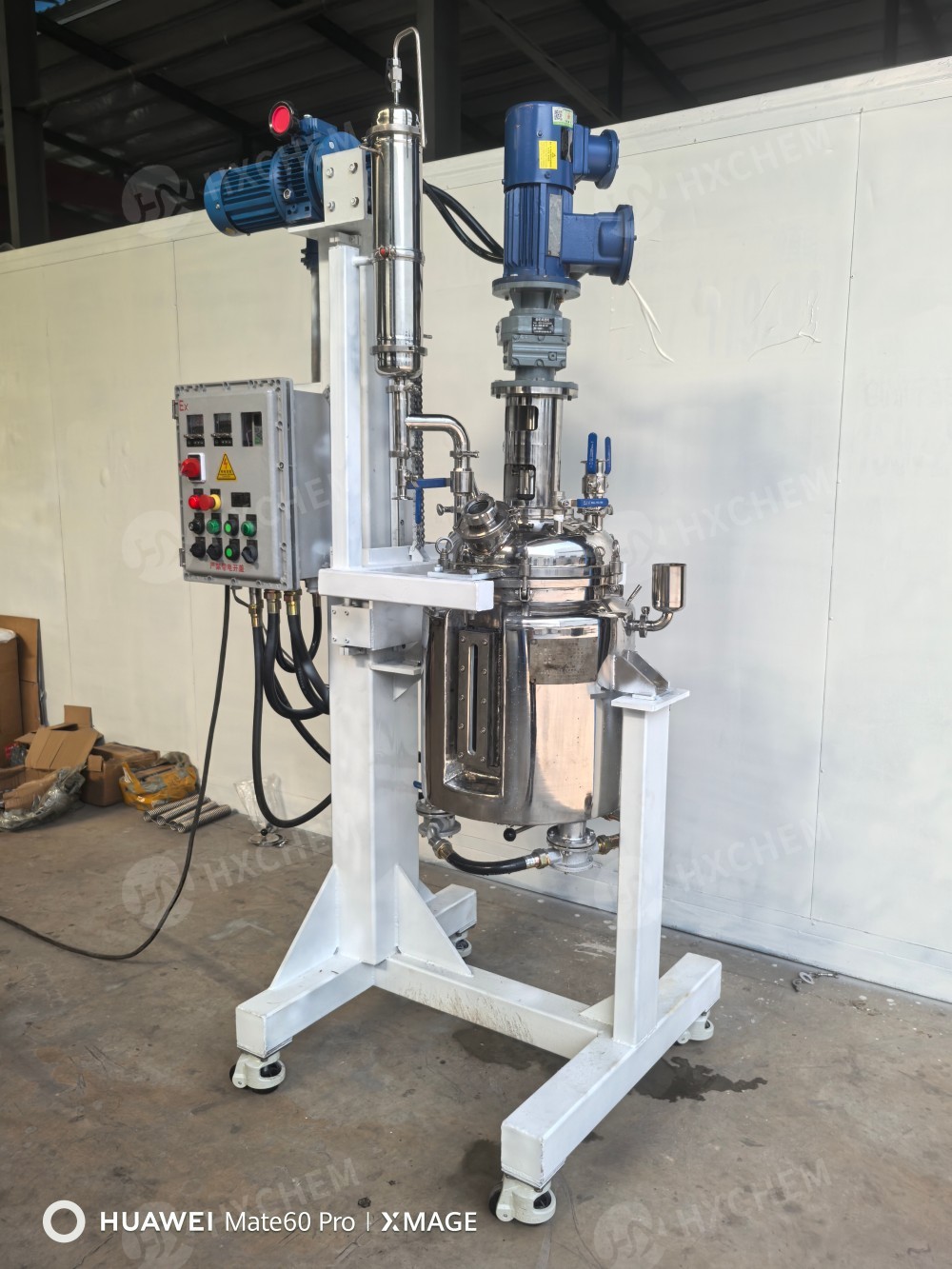

Electric lifting laboratory stainless steel chemical reactors

Low pressure reactor/ mixing tanks

Introduction

This kinds stainless steel reactor equipped with one end mechanical seal, pressure maximum up to 3bar, temperatrue up to 200C, the wet material fabricate in SS316L. The impeller adopt high viscosity spiral belt type, which is used for polymerization, Esterification polycondensation，resin plant, etc. This series stainless steel chemical reactor is widely used in laboratory or pilot plant reactors. The control cabinet fabricate in explosion proof, for operate safety works. The external condenser will helps vapors condensate ruflux to reactor. Electric Chain lifting devices for lid lifting and lowering for labor cost saved.

Features

• Volume: 20liters, 30liters, 40liters, 50liters

• Maximum pressure: 3bar;

• Mximum temperature:200C;

• Material: SS316L or SS304;

• Mechanical seal, maximum 3bar;

• High viscosity spiral belt impeller;

• Sight glass window design on vessel body;


• Electric Chain lifting devices for lid lifting and lowering.

• Explosion proof oil electric heating;

• External vertical condenser and reflux;


• Explosion proof cabinet:

• Temp. pressure display and data record. Temp. pressure alarm


Standard specfications

GSH lifting reactor standard specification table.
