30L lab high pressure reactor
30L autoclave/ Stainless steel / Manual lifting
Introduction
This is one 30liters laboratory high pressure reactor, maximum 100bar@ 320C, MOC:stainless steel SS316L, the reactor equipped with mangetic coupling agitator. The heating method adopt electric oil heating, explosion proof optional. For the design of pilot-scale autoclave and detachable head, the head and container are too heavy to be lifted manually. Therefore, the design with chain pulley support installed can lift the head with minimal effort. When manual operation is still laborious, it can also adopt electric lifting or even hydraulic lifting. HXHCEM will choose the appropriate lifting scheme for you between economy and practicability.
Volume: 30liters.
Pressure: Standard maximum 100bar,
Temperature: Up to 320℃
Material：SS304, SS316, Hastelloy B/C, Nickel, Titanium, Zirconium, etc.
Catalytic Hydrogenation Reactors | High Pressure Lifting Reactor | Catalyst Reactor
Stirred Laboratory Catalyst Reactor | Stainless Steel Stirred Autoclave | Corrosion Autoclaves
Product Features
Floor stands or moveable cart type.
No leakage torque magnetic coupling agitator.
Oil electric heating;
Chain pulley lifting device for reactor head rising and lowering (Electric lifting and hydraulic lifting available）
Monitor and control: Temperature, pressure, motor speed, operating time, etc, touch screen design optional.
Standard specfications
GSH lifting reactor standard specification table.
| Model No. | GSH-5 | GSH-10 | GSH-20 | GSH-30 | GSH-40 | GSH-50 |
| Nominal Capacity | 5liters | 10liters | 20liters | 30liters | 40liters | 50liters |
| Max Working Pressure | Standard 100bar; Max pressure up to 250bar | |||||
| Working Temperature | Standard 350°C；Up to 500°C | |||||
| Stirring Speed | 0-750rpm | 0-500rpm | ||||
| Motor Power | 600W | 600W | 1.1kW | 1.5kW | 1.5kW | 3KW |
| Heating Power | 4kW | 9kW | 9kW | 12kW | 12kW | 15kW |
| Closure | Flange bolts closure/ Clamp closure | |||||
Lifting & lowering | Manual crain lifting/ Electric crain lifting | |||||
| Material | SS304,SS316 or other alloys(Titanium, hastelloy, Inconel, Nickel, etc) | |||||
| Heating Method | Electric heating or Jacket heating | |||||
| Cooling | Internal spiral coils（Optional） | |||||
| Charging Method | Up discharge by pressure or discharge by bottom valve | |||||
| Impeller (Optional) | Propeller, paddle type, turbine, anchor type, gas induction, helix type, etc. | |||||
| Control panel | Temp.display and control, accuracy+ 1℃, Stirring speed display & control Touch screen program control(Optional) | |||||
| Standard fittings | Pressure Gage, Thermocouple, Central stirring port Liquid inlet/ Sampling port with needle valve & dip tube and gas inlet with needle valve Safety Rupture Disc: Internal cooling Coil(Optional); Solid feeding plug(Optional) | |||||

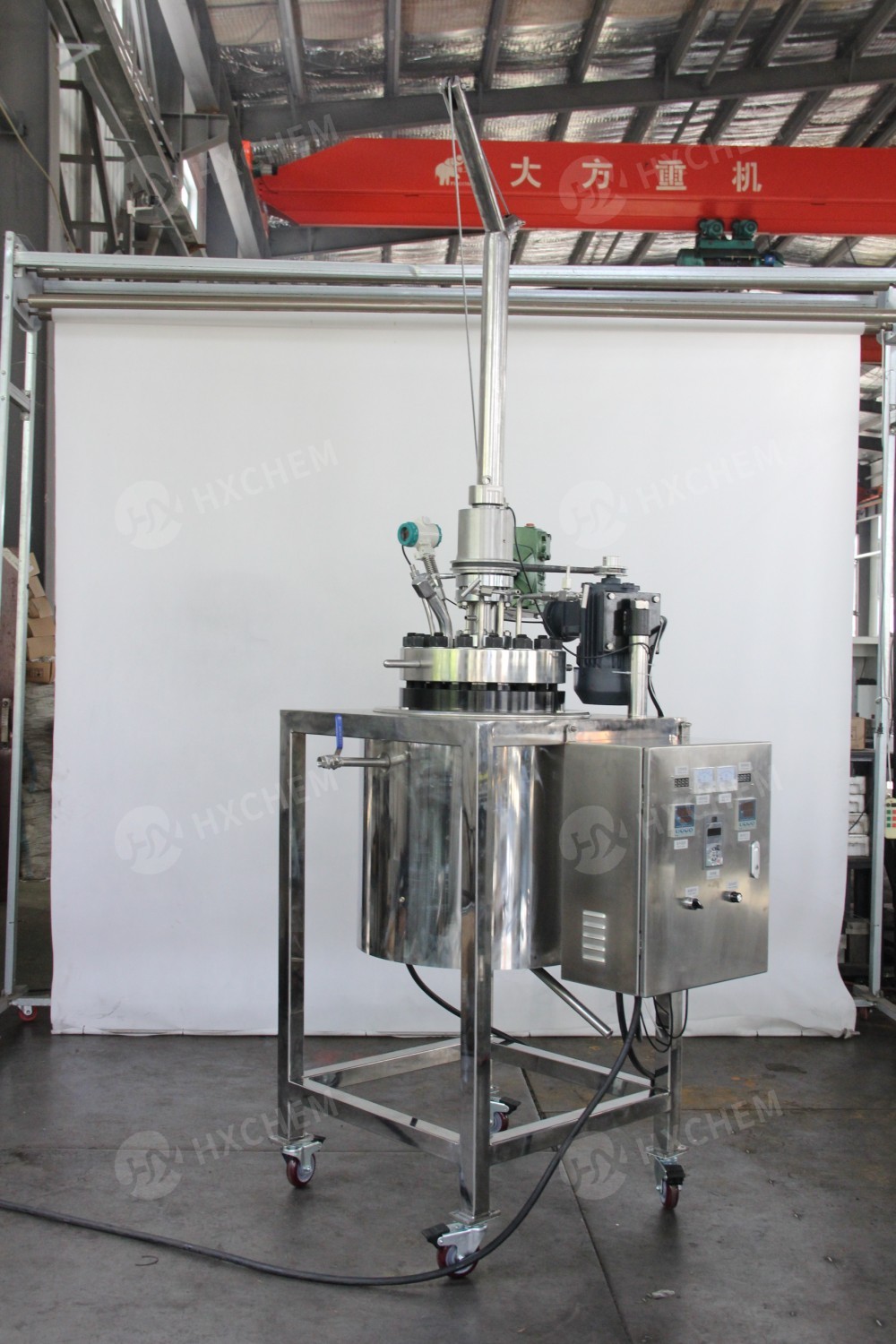

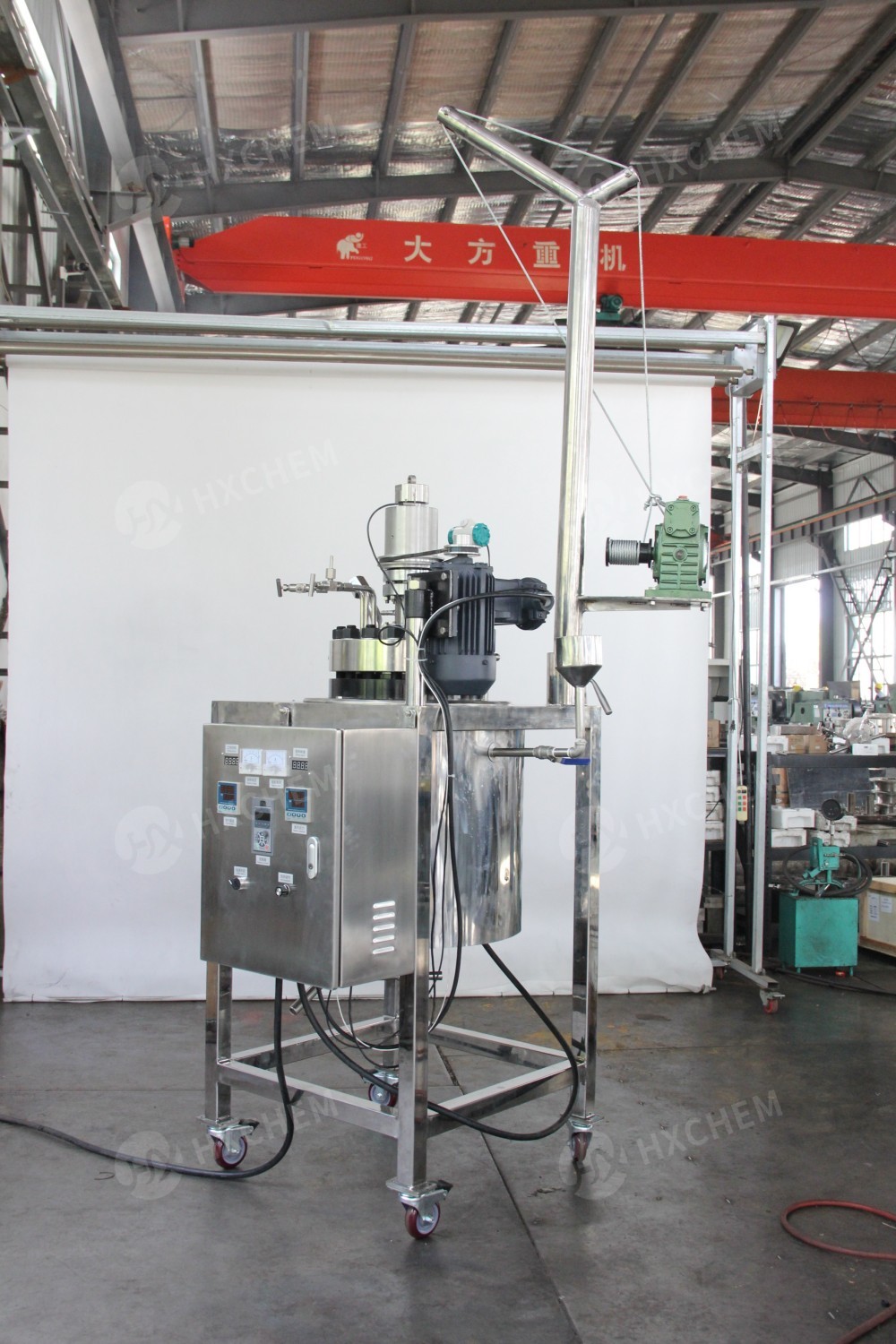

Product images
Customized Specifications
If there has special process requires，HXHCEM will also customize for you！
Pls list your basis process parameters like follows：
1. Reactor volume
2. Operating Temperature
3. Operating Pressure
4. Reactor Material / contacting components material
5. Agitator type, and the Mixing Speed, motor power request?
6. With heating device or not.
7. Internal cooling coil or not, exchange area?
8. Lifting device or not?
9. Your other requests
......Contact us
We like to help you to accomplish your plans.
