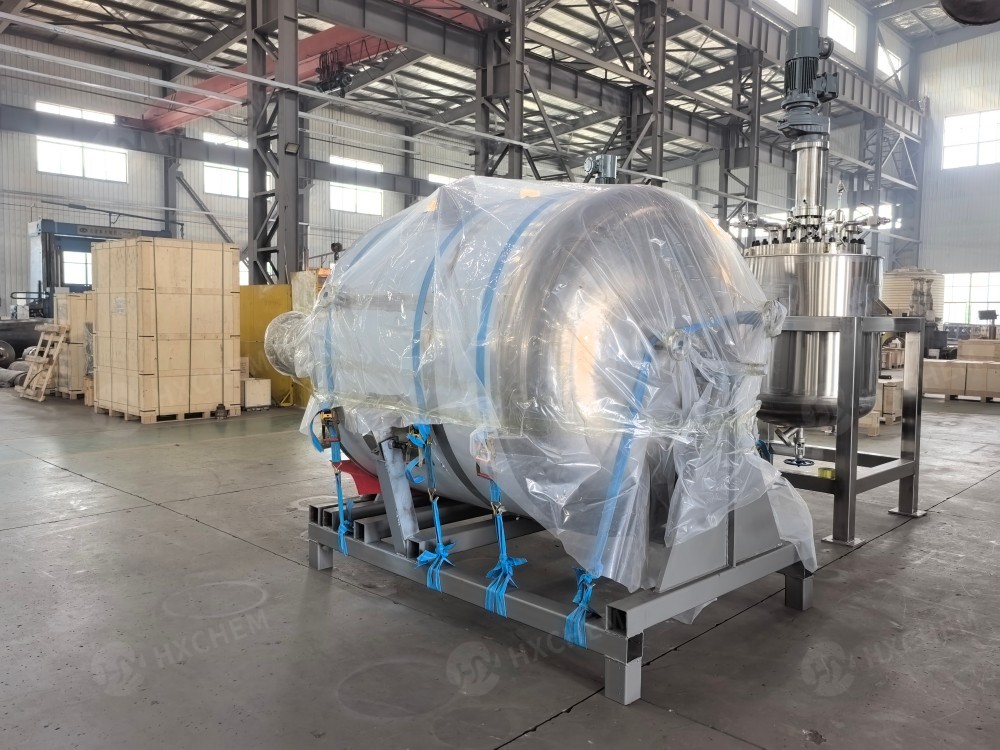

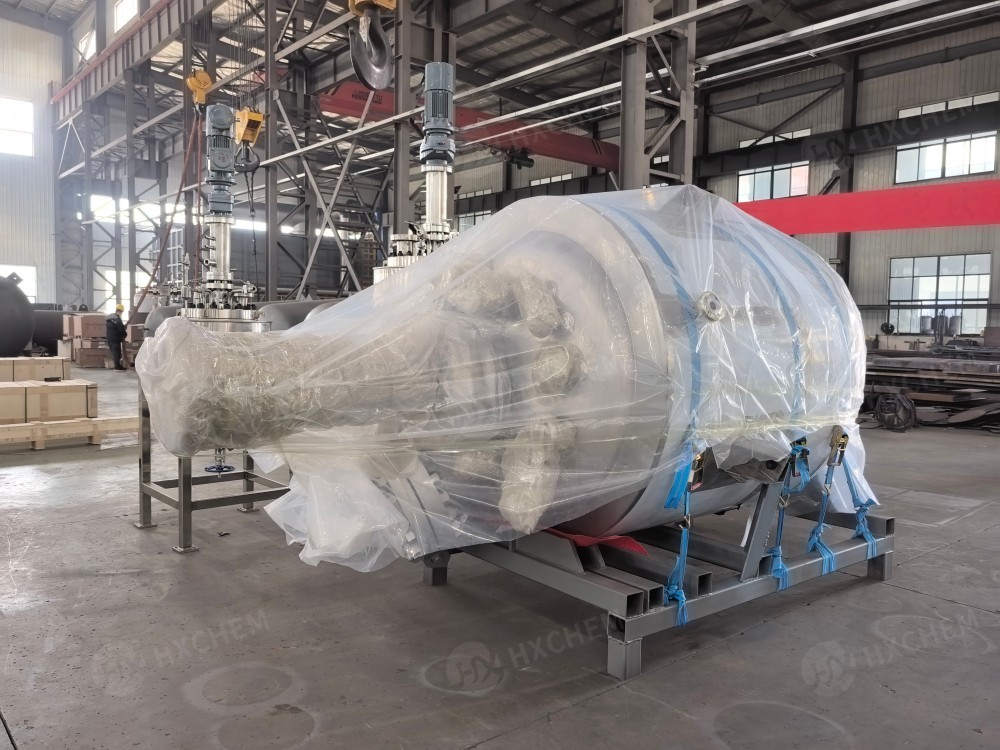

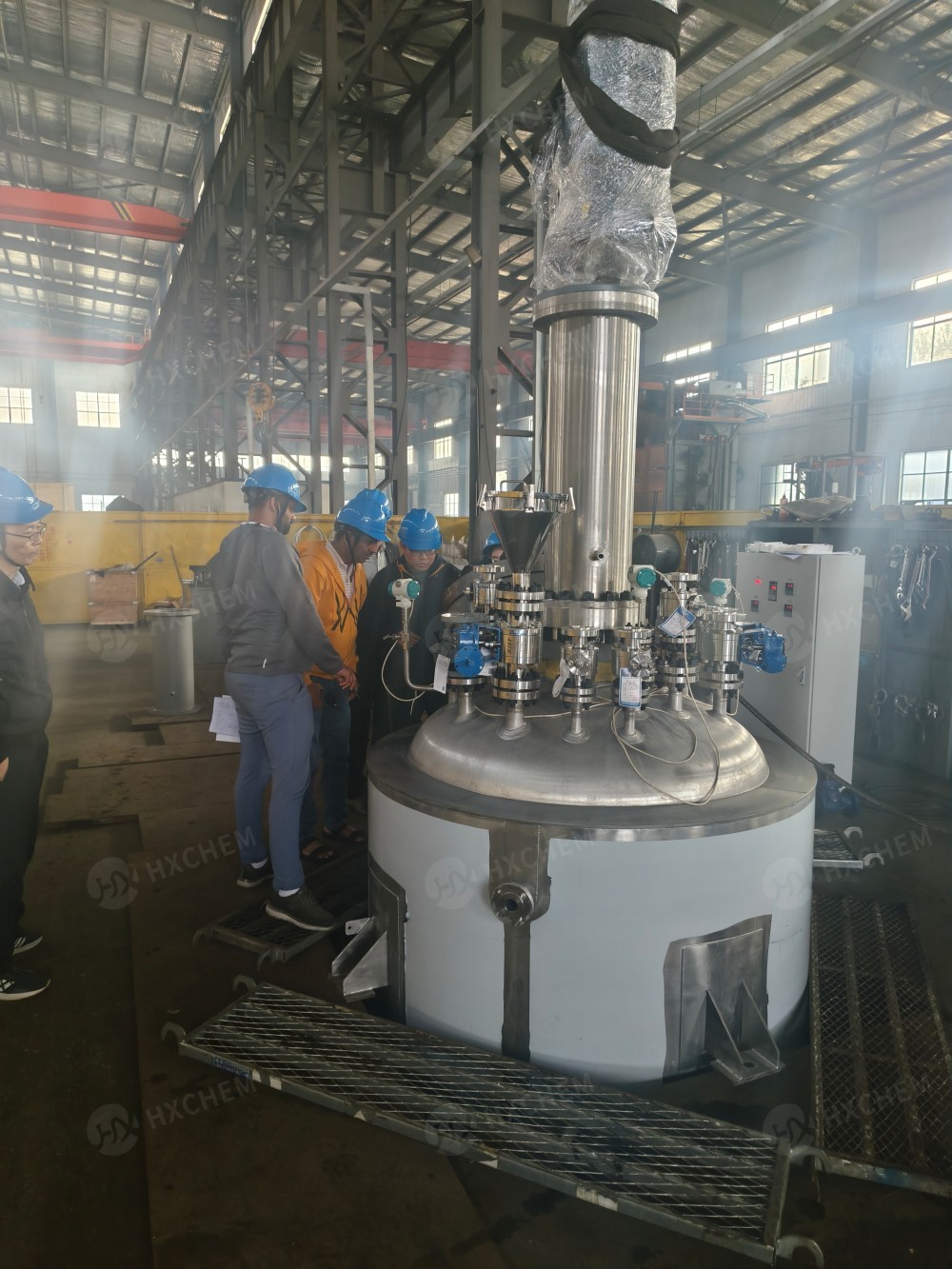

2000L ASME certified hydrogenation reactor

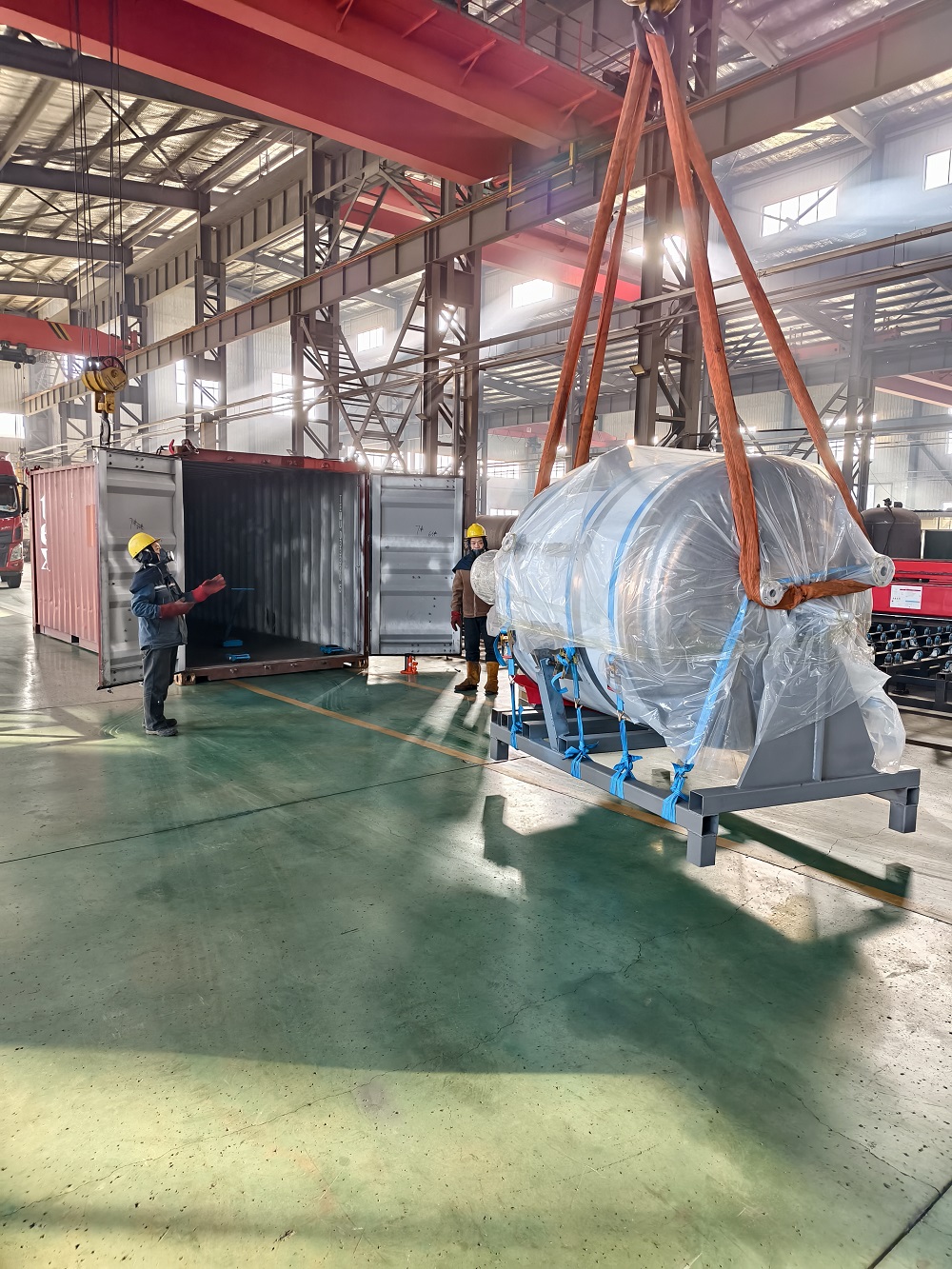

Export to Indonesia

This reactor is application in hydrogenation, which located on Jakarta, Indonesia. The reactor operate under 40bar @180 ceiues degress, the shell body fabricated in Solid SS316L.

• 2000ltr stainless steel hydrogenation reactors

• Volume: 2000liters;

• Design based on ASME VIII DIV.1;

• Design pressure: 50bar

• Design temperature:  200℃；

• MOC: SS316L

• Jacket type： SS304 limpet coil jacket

• Internal coils： Yes

Agitation System: Critical for efficient hydrogenation. It consists of:

Drive Motor: Provides the power for mixing.

Shaft: Transfers the power into the vessel.

Impeller: The specific type is crucial. Common ones for hydrogenation include:

Gas-Inducing Impeller: Designed to draw hydrogen gas from the headspace down into the liquid, creating a large interfacial area for reaction.

Turbine Impeller: Provides strong radial flow for solid suspension (e.g., keeping a solid catalyst well-mixed).

HXCHEM customize various hydrogenation reactor; ASME hydrogenation reactor; stainless steel hydrogenation reactor ; 2000L hydrogenation reactor; 3000L hydrogenation reactors; 5000L hydrogenation reactors; 8000L hydrogenation reactors; 10000L hydrogenation reactors, 20000L hydrogneation reactors, etc.
