Lab pressure autoclave reactors with constant pressure feeding

Brand :HXCHEM

Product origin :China

Delivery time :30 days after payment

Supply capacity :40 sets/month

Floor stands or moveable cart type.
Laboratory autoclaves with 100 ml to 50 liters volume.
Max pressure: 300 bar; Max temperature up to 500 ℃
Low to high torque magnetic couplings: static seal with no leakage.
Continuous feeding system.
Reflux model:Equipped with external condenser, reflux tube line.
Receiving model:Equipped with external condenser, receiving tank.
Available material:SS304, SS316, Titanium, Nickel, Hastelloy B/C, Monel, Zirconium, Inconel
Smooth run, low noise and easy operation.
Monitor and control: Temperature, pressure, motor speed, working time, etc
Safety Device (Blasting Disc) on Security Blasting Port.
Customized according to customers requirement.

Lab pressure autoclave reactors with constant pressure feeding system


Introduction


Stable feeding under constant pressure.

·Continuous feeding and reaction can be realized without breaking the pressure environment.

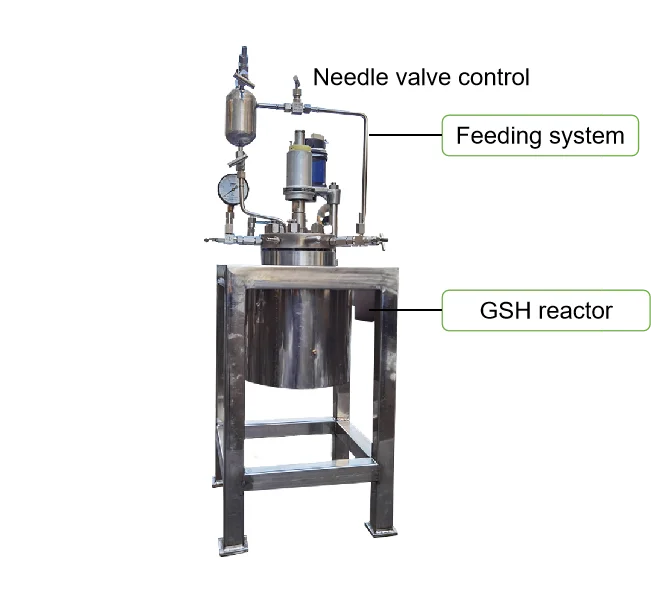

The constant feeding system consists of a recycle tube line, feeding tank, liquid control needle valve and vent valve.


Continuous feeding lab high pressure thermochemical reactor system
can also set the following options:
*Quick open design(split clamp with clamp bolts)
*Floor stand or moveable cart design
*Dir
ect drive or belt drive optional
*Reactor lift / lowering / Tilting device.
*Magnetic and mechanical seal.
*Vacuum pump, Heating & cooling circulator, PLC control and others.
*Various impeller type available for mixing mission.
*Various Anti-corrosion alloy material available.

Application: Rearch/Lab, High pressure, high vacuum, high temperature condition. Chemical/Pharmaceutical, Syntheses, Reactor systems, Low temperature reactions.



High pressure system | Scale up hydrogenation pilot plant | Pressure reactor systems


Volume
100ml-50 liters
Pressure
Standard 100bar, Max.300bar
Temperature
350 ℃
Material
SS304 /SS316
Heating type
Electric Heating
Cooling type
Internal spiral coils
Impeller type
Propeller, Turbine, Anchor type

Product Features

* Floor stands or moveable cart type.
* Laboratory autoclaves with 100 ml to 50 liters volume.
* Max pressure: 300 bar; Max temperature up to 500 ℃
* Low to high torque magnetic couplings: static seal with no leakage.
* Continuous feeding system.
* Reflux model:Equipped with external condenser, reflux tube line.
* Receiving model:Equipped with external condenser, receiving tank.
* Available material:SS304, SS316, Titanium, Nickel, Hastelloy B/C, Monel, Zirconium, Inconel
* Smooth run, low noise and easy operation.
* Monitor and control: Temperature, pressure, motor speed, working time, etc
* Safety Device (Blasting Disc) on Security Blasting Port.
* Customized according to customers requirement.


Special alloy available
Titanium, Nickel, Hastelloy, Zirconium
Feeding system
Continuous and stable feeding under high pressure
Magnetic couplings
Static seal with no leakage.

Internal Drawings

* Internal spiral coils
Quick coolings for material
* Dip tupe device
Used for up discharging
* Various impeller available
Propeller, turbine, anchor, others

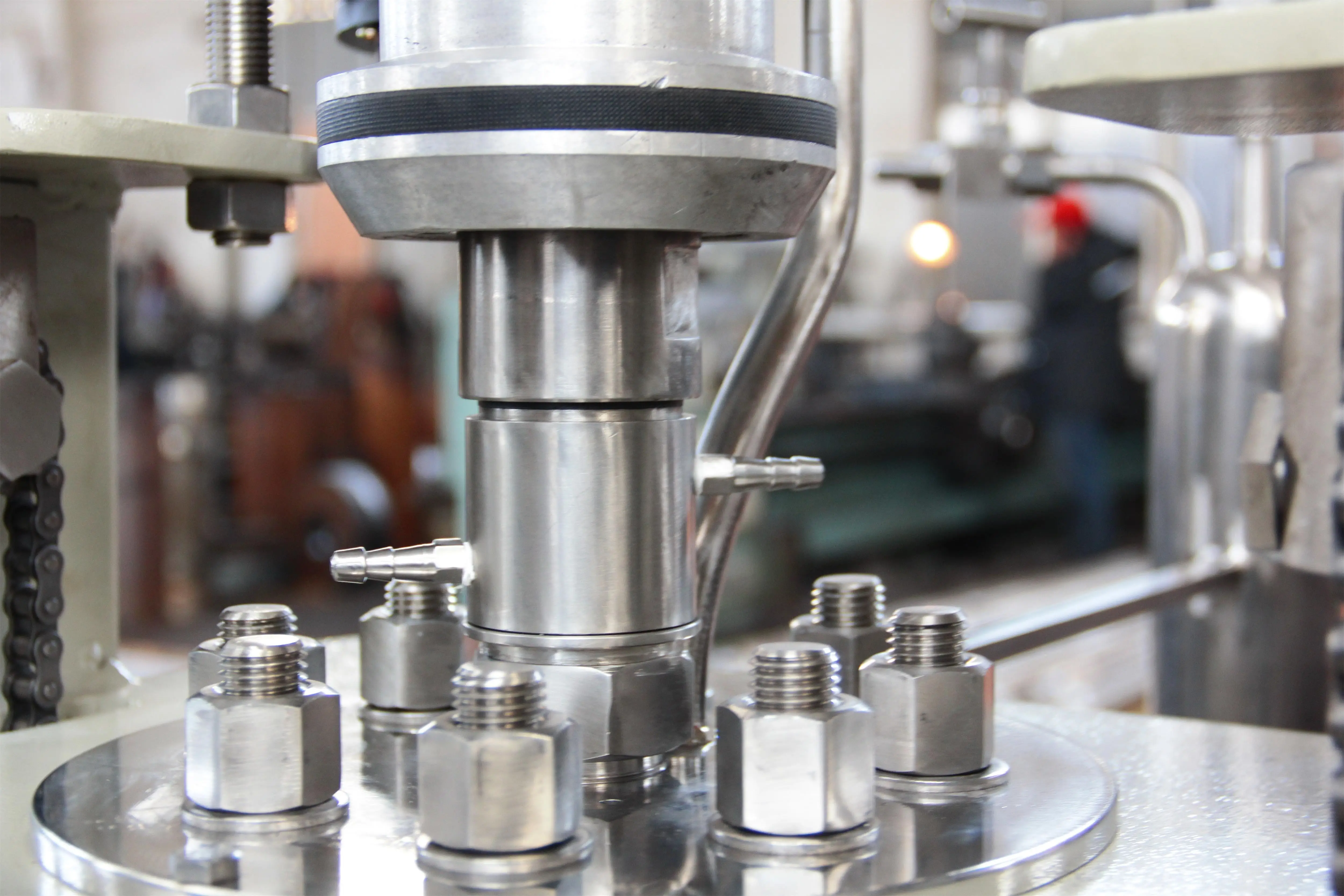

Magnetic Stirrer

* 100% Sealing. Zero leakage.
* Zero emission of hazardous fluids.
* Suitable for pressure fluctuations.
* Various capacities available.
* Compact Design.

Control system

Intelligent digital temperature control
with the temperature, stirring speed display & control and working time display
Size Information
Quick selection
Type
GSH-0.1~1
GSH-1~10
GSH-10~25
GSH-25~50

Volume(L)
0.1~1
1~10
10~25
25~50

Working pressure(MPa)
-0.1~30
-0.1~30
-0.1~30
-0.1~30

Motor power(W)
40~80
80~200
300~750
1100

Heating power(KW)
0.1~1
1~3
3~6
4~9

Working temperature(°C)
-196~500

Stirring speed(r/min)
0~1500

Heating type
Electric heating, thermal oil heating available

Cooling Method
Spiral coils(Single coils, serpentine coils available)

Charging type
Charging from above, discharging from bottom.

Stirring type
Customized anchor-type, frame-type, propeller type, turbine-type, scraper-type or paddle-type...etc

Seal type
Magnetic seal, mechanical seal,

Motor
General DC motor, DC servomotor or explosion-proof motor according to customers’ requirements.

Controller Device
Temperature, time and heating voltage display
Temperature adjustment control, accuracy±1 ℃
Stirring speed display and control,Others

Standard fittings
Pressure Gage; Thermocouple; Internal Stirring System
Liquid inlet and gas inlet with needle valve;Gas Release Valve
Dip Tube; Safety Rupture Disc; Cooling Coil

Product Details

Reasonable and compact structure.

Customized according to customer process requirements to ensure high efficiency, beauty and high service life.

Magnetic stirrer.

100% Sealing. Zero leakage.
Zero emission of hazardous fluids.

Agitator optional.

Various impeller type available for mixing mission

Vessel removable & tilt function.

The kettle vessel can be lowered and tilted to discharge materials.
Easy use and less labor cost.

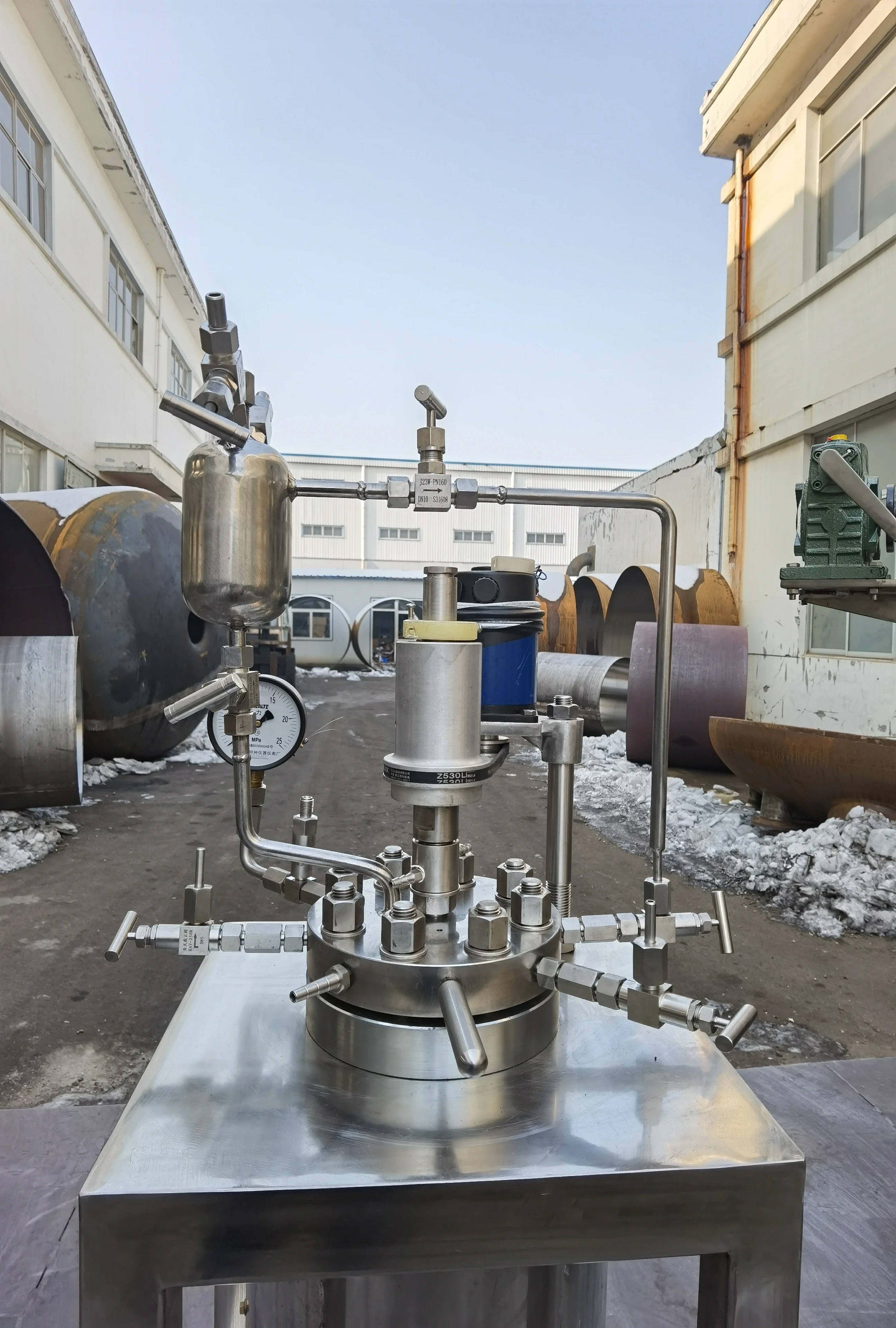

Feeding system.

Continuous and stable feeding under high pressure.

Safe and reliable.

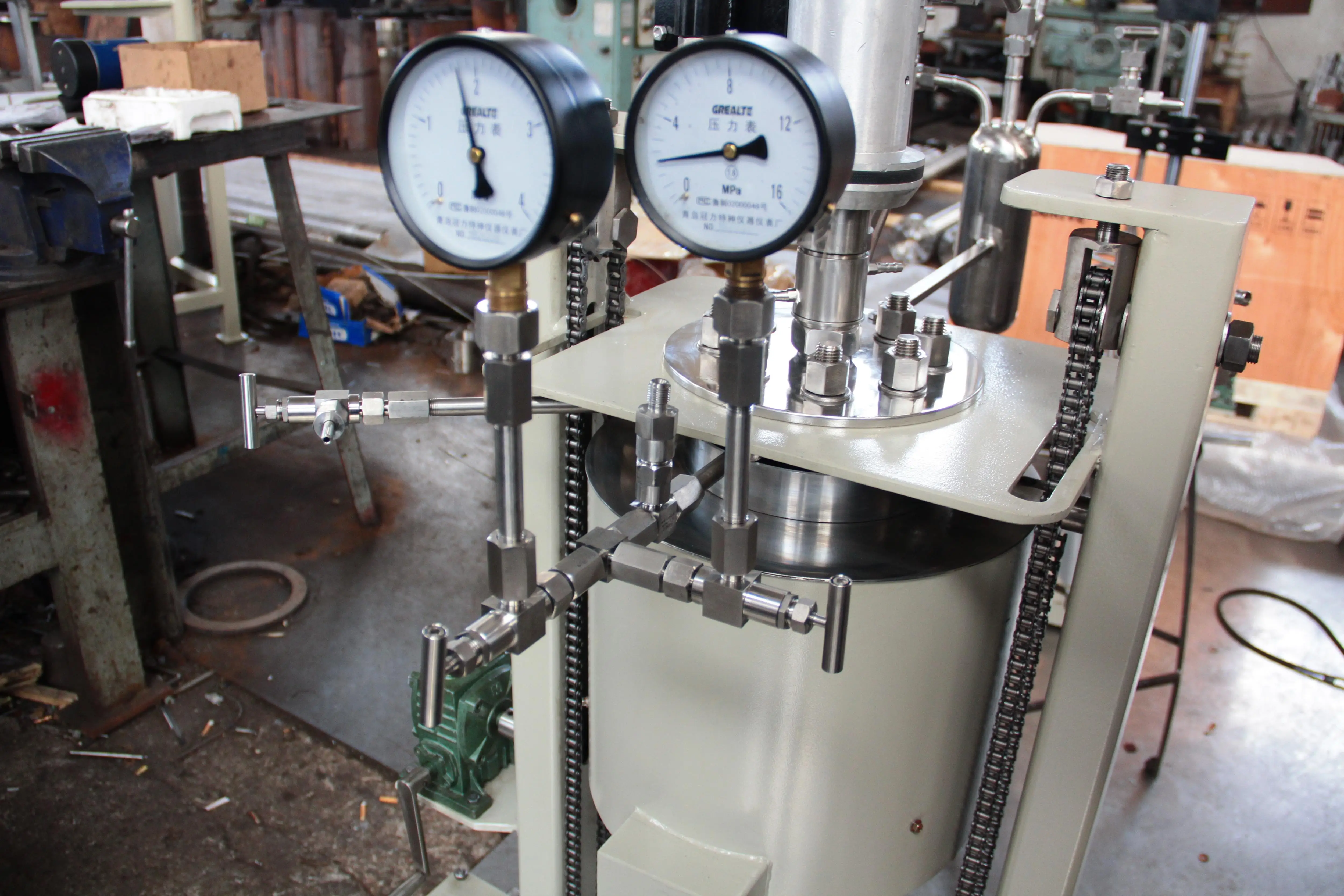

Pressure gauge, safety device with bursting disc, safety valve and complete test report.
